Makita LH1201FL Table/Mitre Saw – 305 mm, 1,650 W, 110 V or 240 V Flip‑Over Combo Saw

Makita LH1201FL Table/Mitre Saw – 305 mm, 1,650 W, 110 V or 240 V Flip‑Over Combo Saw

Vacuum cleaner connection Ø in / out
Max. Cutting Height (above Table) at 90°
Laser Class
Capacity 45° left
Max. Mitre Range (Left)
Capacity 90°
Capacity 45°
Max. Bevel Range (Left)
Blade Diameter
Bore Size (Arbor Diameter)
Brand
Weight Without Cable
Power Supply Cord
Continuous Input Power
Noise Uncertainty (K Factor)
Sound Pressure Level (LpA)
Sound Power Level (LWA)
Product Dimensions (L x W x H):
Vibration Uncertainty (K Factor)
Vibration Level (3 axes)
Voltage
No load speed
Please select from the options above.
Quantity: - +

Makita LH1201FL Table/Mitre Saw – 305 mm Blade / 1,650 W / 110 V or 240 V

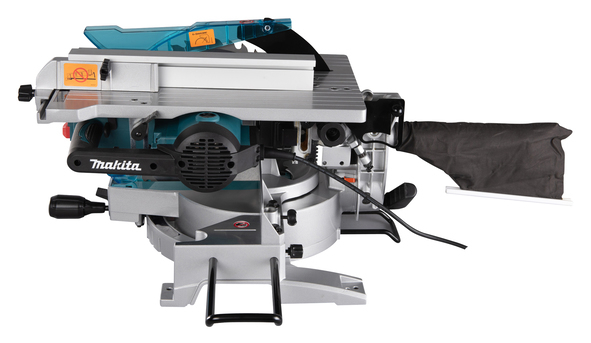

The Makita LH1201FL is a robust and versatile flip-over combination saw that seamlessly transforms from a mitre/crosscut saw into a table-top ripping saw, all within one compact unit. Thanks to its sizeable 305 mm TCT blade, accurate bevel and mitre angles, built-in laser and optics, and powerful dust-extraction capability, it's equally suited for larger site-based jobs or workshop use. At around 20.9 kg, it remains highly portable and easy to set up, making it a trusted tool for professionals requiring both precision and portability. Choose LH1201FL/1 for 110 V transformer-safe operation or LH1201FL/2 for standard 240 V mains.

✅ Key Features:

  • 1,650 W motor with soft-start, electric brake, and anti-restart safety

  • High blade speed around 3,800 rpm, even under load

  • 305 mm diameter blade with 30 mm arbor for wide cutting capacity

  • Mitre function:

    • Bevel: 45° left

    • Mitre: up to 52° right, 47° left

    • Max cut at 90°: approx. 95 × 155 mm or 62 × 200 mm depending on orientation

  • Table Saw mode: cutting height up to 52 mm (single-table position)

  • Built-in laser guide and LED work light for precise alignment

  • Double-insulated design with integrated dust extraction port (32/37 mm) and dust bag

📦 What’s Included:

  • Makita LH1201FL saw body (select LH1201FL/1 for 110 V or LH1201FL/2 for 240 V)

  • 305 mm TCT blade installed

  • Push stick, rip guide, and mitre gauge

  • Dust adaptor and dust bag, along with blade guard and riving knife

  • Locking wrenches and hex keys, plus onboard tool storage

🔧 Ideal For:

  • Trade professionals who need both mitre and table saw functionality in one portable tool

  • Accurate bevel, miter, and ripping cuts on-site or in workshop environments

  • Cutting structural timber, panel boards, framing, cladding, and more

⚠️ Please Note:

  • Voltage-specific ordering is essential: LH1201FL/1 = 110 V, LH1201FL/2 = 240 V

  • Use only blades rated ≥ 305 mm, ≥ 3,800 rpm and with correct bore (30 mm)

  • Operation must include blade guard and riving knife at all times

  • Required PPE: eye/ear protection, gloves, and dust mask
