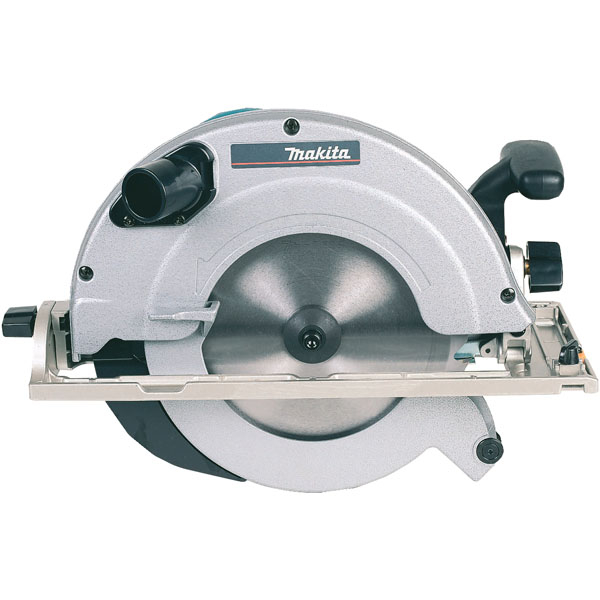

The Makita 5903R/1 is a high-performance 110 V corded circular saw, ideal for construction sites powered via transformer. Designed for robust timber and sheet material cutting, it's the go-to option where safety and reliability are essential.
1,550 W motor with soft-start and electric brake for safety and smooth control
235 mm blade capable of cutting up to 85 mm depth at 90°, 64 mm at 45°
Riving knife reduces kickback and enhances cutting safety
Efficient dust port and built-in blower keep the cutting line clear
Precise depth and bevel adjustment (0°–45°) for versatile cutting
Powerful performance at 4,500 rpm, suited for demanding jobs onsite
Durable aluminium base and double-insulated construction
Includes rip fence (guide rule) and hex wrench, packaged in a sturdy case
Lightweight (approx. 7.2 kg) for easy handling and transport
1x Makita 5903R/1 Circular Saw (110 V)
1x 235 mm carbide-tipped saw blade
1x Rip fence (guide rule)
1x Hex wrench
1x Carry case
On-site framing, sheet material cutting, and flooring installation
Environments using transformer-based power systems (110 V)
Trades requiring precise bevel cuts up to 45° with power tool safety features
This model is available only in 110 V configuration (Makita model number 5903R/1)
Not compatible with 240 V mains power—select the correct voltage before purchasing
| Brand | Makita |
|---|---|
| No load speed | 4500 min⁻¹ |
| Voltage | 110V |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 400 x 235 x 286 mm |
| Sound Power Level (LWA) | 106 dB(A) |
| Sound Pressure Level (LpA) | 95 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Continuous Input Power | 2000 W |
| Power Supply Cord | 2.5 m |
| Weight Without Cable | 7.6 kg |
| Vacuum cleaner connection Ø in / out | 30/38 mm |
| Max. Cutting Depth at 90° | 85 mm |
| Vibration Level. Cutting metal | 4.0 m/s² |
| Bore Size (Arbor Diameter) | 30 mm |
| Max. Cutting Depth at 45° | 64 mm |
| Blade Diameter | 235 mm |
| Max. Bevel Range (Left) | 0 / 45 º |
| Vibration Level. Cutting Wood | 3.0 m/s² |
