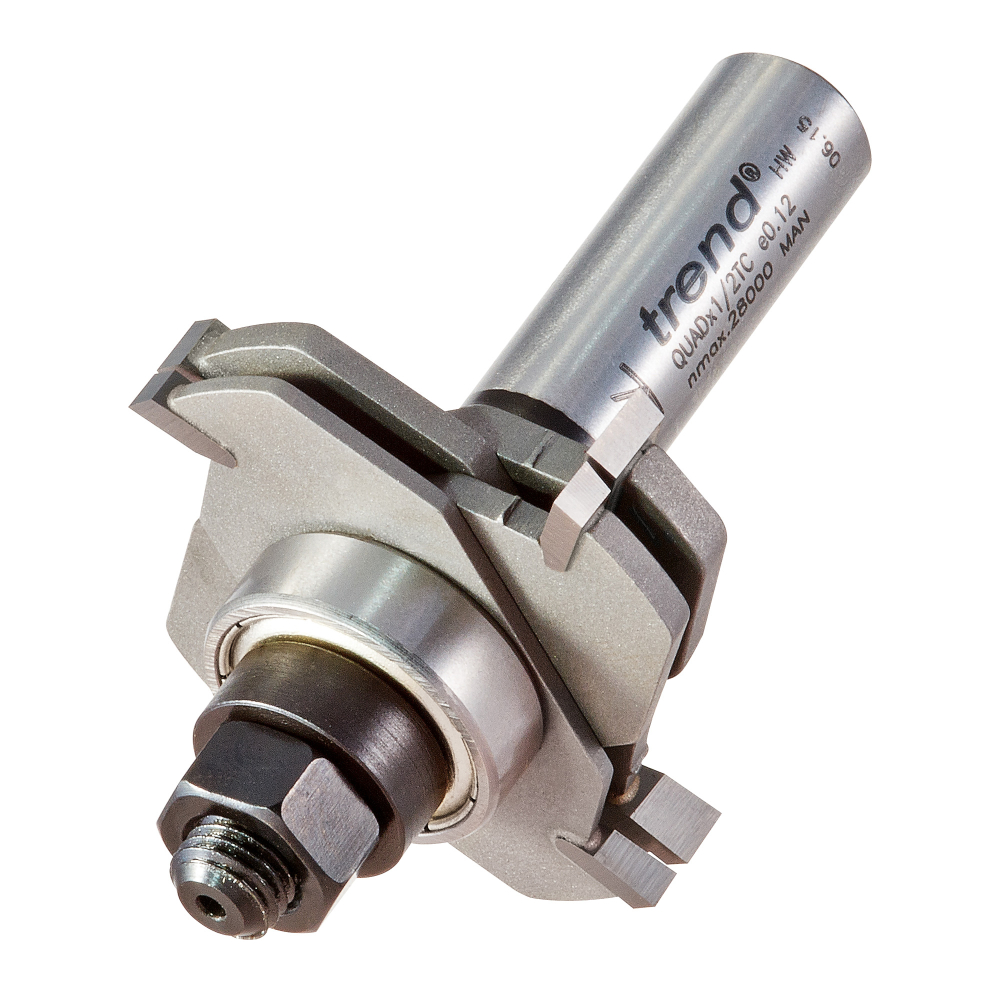

Trend QUADX1/2TC Quad groover set

Trend QUADX1/2TC Quad groover set

Stock Code: QUADX1_2TC
Available to Order
£145.65 (inc VAT) per each
£121.37 (exc VAT)
Quantity: - +
Quad groover set. D=47.6 mm|C2=3.2 to 18 mm|B=22 mm|E=12.8 mm|OL=76.2 mm|Shank Diameter=1/2 inch|SP-QUAD/18 =3.2 mm|SP-QUAD/532 =4 mm|SP-QUAD/316 =4.8 mm|SP-QUAD/14 =6.3 mm|For stationary machines at max. recommended speed 18,000 RPM This versatile 1/2 inch shank groover set offers grooving widths of 3.2mm, 4.0mm, 4.8mm and 6.3mm. It is infiniteley variable from 6.6mm to 18mm in 0.1mm increments. A jointing facility using the bearing is also possible. |Set comprises of four 2 wing groovers with 7.94mm (5/16 inch) bore and an arbor which may be used singly or together to produce a wide range of groove widths. One ball bearing comes as standard.|This set can also be used to tongue and groove 9mm to 22mm board.
BrandTrend
Diameter mm47.6
Cut Length mm3.2 to 18
Overall Length mm76.2
Bearing Diameter mm22
Rebate mm12.8
