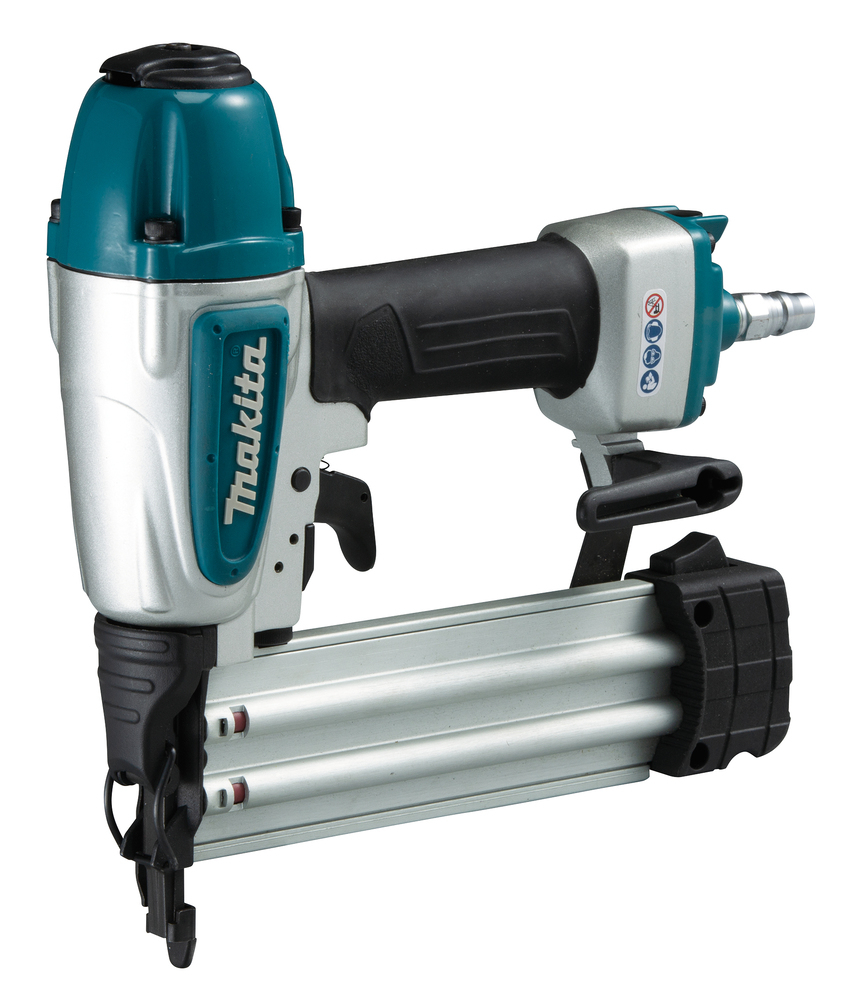

Makita AF506 18Ga Pneumatic Brad Nailer
The Makita AF506 is a lightweight, precise 18-gauge pneumatic brad nailer, engineered for fine finishing, trim work, cabinetry, and delicate carpentry. It drives 15–50 mm (½" – 2 ") 18-gauge brad nails, leaving a minimal, clean finish ideal for mouldings, decorative trim, and other detailed applications.
Featuring a tool-free depth adjustment, narrow nose, and no-mar tip, the AF506 ensures accurate nail placement without damaging the workpiece. Its dual-trigger safety, rear exhaust, and ergonomic grip make it both safe and comfortable for extended use in production or on-site environments.
✅ Key Benefits:
Drives 18 Ga brad nails 15–50 mm (½"–2") – versatile for most finishing applications
Tool-free depth adjustment – quickly set nail depth for flush, professional results
No-mar tip – protects delicate surfaces from scratches and marring
Narrow nose design – enhanced line of sight for precise placement in tight corners
Dual-trigger safety – prevents accidental firing for added operator protection
Rear exhaust – directs airflow away from user and workpiece
Lightweight (1.2 kg) – reduces fatigue during prolonged use
Clear reload window – see remaining nails at a glance and minimise downtime
📦 Kit Contents:
1× Makita AF506 18 Ga Pneumatic Brad Nailer
1× No-Mar Tip Cap (pre-installed)
1× Adjustable Depth Collar
1× Safety Goggles
1× Air Fitting Plug
1× Carry Case
1× Instruction Manual
⚠️ Please Note:
Requires an air compressor (60–115 psi / 4–8 bar) and 18 Ga brad nails (sold separately). Always wear appropriate PPE when operating pneumatic tools.
| Brand | Makita |
|---|---|
| Fastener Magazine Capacity | 100 |
| Nail Length | 15 - 50 mm |
| Nail Diameter | 1.2 mm |
| Operating pressure | 4.9 - 8.3 bar |
| Fastener Gauge | 18 Ga |
| Depth Adjustment | Yes |
| Vibration Level (3 axes) | 7.6 m/s² |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 250 x 70 x 256 mm |
| Product net weight | 1.3 kg |
| Magazine Angle | 0 º |
| Plastic Carrying Case | Yes |
| Sound Power Level (LWA) | 109 dB(A) |
| Sound Pressure Level (LpA) | 99 dB(A) |
| Noise Uncertainty (K Factor) | 1.5 dB(A) |
