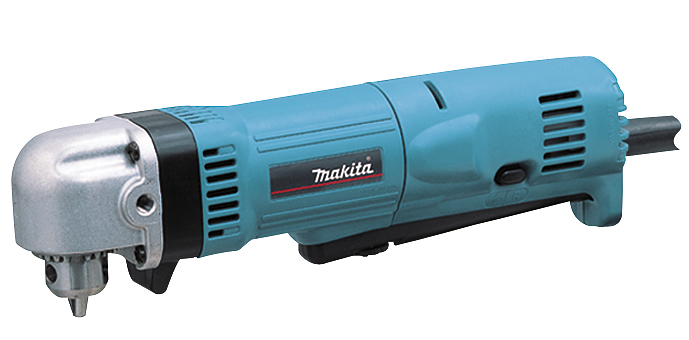

A slim and robust right-angle drill, the DA3010 is just 66 mm wide at the head—perfect for tight spaces like between studs or overhead. Powered by a 450 W motor, it achieves speeds up to 2,400 rpm for efficient drilling in wood, steel, and confined areas.
Ultra-compact 66 mm head width lets you work in confined spaces
10 mm keyed chuck with 25 mm wood and 10 mm steel drilling capacity
High torque 450 W motor, variable speed up to 2,400 rpm
Forward/reverse paddle trigger with speed dial for drilling and screwdriving
LED work light in lighted models (DA3010F variants) for enhanced visibility
Double-insulated metal gear housing, durable yet lightweight at around 1.4 kg
Forward/reverse selector for drilling and backing out stuck bits
Supplied with side handle and chuck key for better control
1× Makita DA3010 Drill (choose 110 V or 240 V; F models include LED)
1× 10 mm Chuck Key
1× Side Handle
Drilling bolt holes between joists, studs, pipes, and other constrained areas
Automotive, maintenance, and joinery tasks where compact reach is essential
Tasks requiring reliable, plug‑in power with no battery dependence
Choose the correct voltage at checkout – 110 V (site transformer) or 240 V (mains)
F‑suffix models include a built-in LED light; standard models do not
| Brand | Makita |
|---|---|
| No load speed | 0 - 2400 min⁻¹ |
| Voltage | 240V |
| Product Dimensions (L x W x H): | 270 x 61 x 79 mm |
| Sound Power Level (LWA) | 92 dB(A) |
| Sound Pressure Level (LpA) | 81 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Continuous Input Power | 450 W |
| Power Supply Cord | 2.5 m |
| Weight Without Cable | 1.6 kg |
| Max. Drilling Diameter in Wood | 25 mm |
| Max. Drilling Diameter in Steel | 10 mm |
| Drill Chuck Capacity | 1.5 - 10 mm |
| Vibration Level. Drilling into metal | ≤ 2.5 m/s² |
| Vibration Uncertainty (K Factor). Drilling into metal | 1.5 m/s² |
| Drilling Capacity Wood (Self-feed bit) | 50 mm |
| Angle length | 66 mm |
