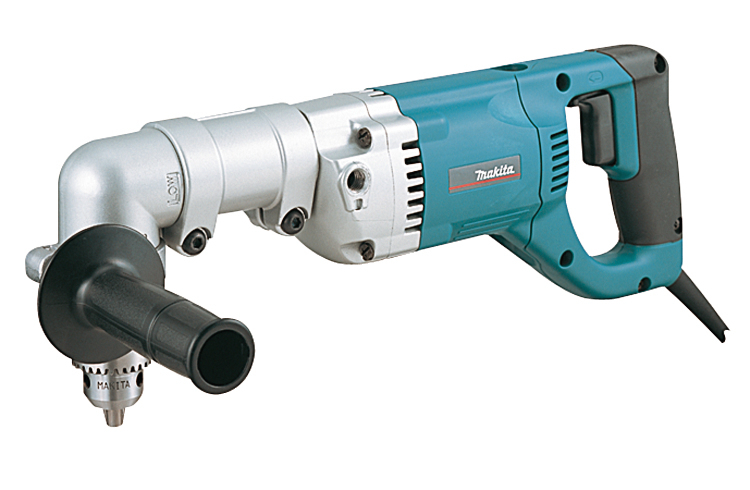

The Makita DA4000LR is a professional-grade rotary angle drill designed to deliver power and flexibility in tight, awkward spaces. Fitted with a 13 mm keyed chuck, a robust 710 W motor, and a 360° rotating head, it’s engineered for demanding drilling jobs in wood, metal, and confined locations.
It features a 2-speed mechanical gearbox with ranges of 0–400 rpm (low speed for torque) and 0–900 rpm (high speed for faster drilling). The DA4000LR combines heavy-duty performance with ergonomic control, making it ideal for M&E contractors, fabricators, and workshop pros.
360° Rotating Head for ultimate flexibility when drilling in tight spaces
710 W Motor delivers consistent power across tough applications
13 mm Keyed Chuck handles wood up to 38 mm and steel up to 13 mm
2-Speed Gearbox:
Low speed: 0–400 rpm for high torque
High speed: 0–900 rpm for faster drilling
Reversible Operation for backing out bits
Ball-Bearing Construction & Metal Gearing for long service life
Side Handle & Rubber Grip for stability and comfort
Double Insulated Body – compliant for both site and workshop use
Available in 110 V or 240 V versions
1× Makita DA4000LR Rotary Angle Drill (110 V or 240 V)
1× 13 mm Chuck Key
1× Side Handle
1× Hex Wrench
1× Carry Case
Drilling between floor joists, steel frames, or overhead pipework
Electrical, plumbing, and fabrication professionals
Applications requiring torque control and reach into confined areas
Choose either 110 V (for site transformers) or 240 V (for standard mains) at point of purchase
Designed strictly for drilling applications—no percussion mode
| Brand | Makita |
|---|---|
| No load speed | 0 - 900 min⁻¹ |
| Voltage | 110V |
| Product Dimensions (L x W x H): | 413 x 83 x 144 mm |
| Product net weight | 3.7 kg |
| Sound Pressure Level (LpA) | 80 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Continuous Input Power | 710 W |
| Power Supply Cord | 2.5 m |
| Weight Without Cable | 4.0 kg |
| Max. Drilling Diameter in Wood | 38 mm |
| Max. Drilling Diameter in Steel | 13 mm |
| Drill Chuck Capacity | 2 - 13 mm |
| Vibration Level. Drilling into metal | 4.6 m/s² |
| Vibration Uncertainty (K Factor). Drilling into metal | 2.9 m/s² |
| Max. Torque (2. Gear / 1. Gear) | 55 / 123 Nm |
| Drilling Capacity Wood (Self-feed bit) | 65 / 118 mm |
| Angle length | 153 mm |
