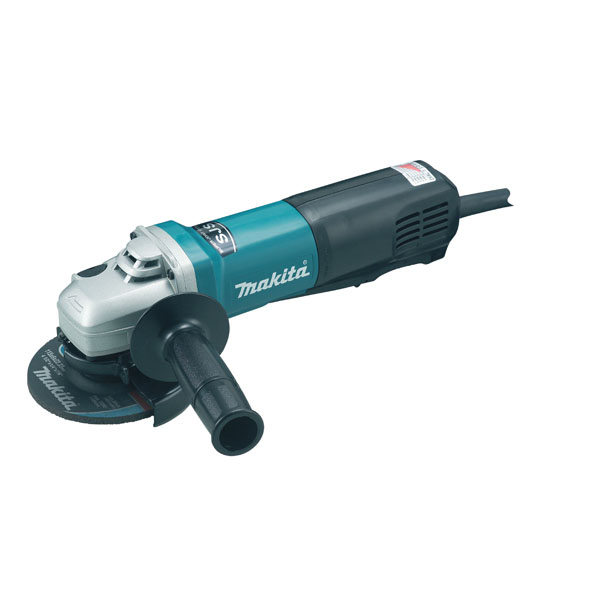

The Makita 9564PCV is a compact, high-performance 115 mm (4½") angle grinder designed for professional use. Equipped with a paddle switch, variable speed control, and Makita’s advanced Super Joint System (SJS), it delivers excellent control and durability for both cutting and grinding applications. Available in 110 V and 240 V models.
1,400 W motor with soft start and constant speed control
Variable speed range: 2,800–11,000 rpm for different materials and disc types
Super Joint System (SJS) clutch protects gears in the event of disc binding
Paddle switch with safety lock-off for increased control and user protection
Rotating gear housing and adjustable side handle allow versatile handling
Zig-zag armature coating, labyrinth construction, and improved dust seals for longer tool life
Compact and lightweight for reduced fatigue during prolonged use
Makita 9564PCV Angle Grinder (choose 110 V or 240 V version)
115 mm grinding or cut-off wheel
Tool-less adjustable guard
Side handle
Lock nut, inner flange, and wrench
Grinding welds, cutting metal, smoothing masonry edges
Controlled grinding in tighter spaces where precision matters
Job sites with transformer-fed 110 V or 240 V mains supply
Select the correct voltage version (110 V or 240 V) before ordering
Always use accessories rated for 11,000 rpm and appropriate PPE
Tool is compatible with standard M14-threaded discs
| Brand | Makita |
|---|---|
| No load speed | 12000 min⁻¹ |
| Voltage | 240V |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 307 x 129 x 103 mm |
| Sound Power Level (LWA) | 92 dB(A) |
| Sound Pressure Level (LpA) | 81 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Continuous Input Power | 1400 W |
| Power Supply Cord | 2.5 m |
| Weight Without Cable | 2.4 - 2.7 kg |
| Bore Size (Arbor Diameter) | 22.23 mm |
| Grinding Disc Diameter | 115 mm |
| Spindle Thread | M14 |
| Vibration Level. Disc Sanding | ≤ 2.5 m/s² |
| Vibration Level. Surface Grinding | 10.0 m/s² |
