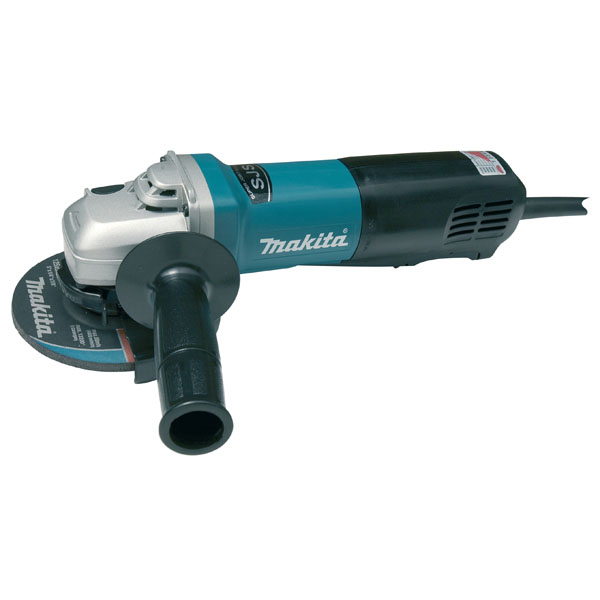

The Makita 9565PCV is a compact but powerful 125 mm (5″) paddle‑switch angle grinder, delivering high-speed performance and enhanced protection. It’s available in both 110 V (site transformer compatible) and 240 V (mains) versions, making it a versatile choice for professionals working across different power requirements.
1,400 W motor with variable speed range 2,800–12,000 rpm, soft-start, and constant-speed control
Super Joint System (SJS) mechanical clutch protects the tool if the disc binds
Paddle switch with lock‑off enhances safety and usability
Labyrinth motor sealing and zig‑zag varnish for extended tool life in dusty conditions
Tool‑free adjustability of the wheel guard for quick positioning
Ergonomic AVT® anti‑vibration side handle, designed for reduced user fatigue
Dual‑voltage availability: select 9565PCV/1 (110 V) or 9565PCV/2 (240 V)
Lightweight (~2.4‑3.5 kg) and compact (approx. 307 × 139 × 103 mm)
Makita 9565PCV Angle Grinder (choose 110 V or 240 V version)
125 mm grinding / cut-off disc
Paddle switch guard
Side handle
Inner flange & lock-nut wrench
Heavy-duty grinding and cutting in metal, mortar, or masonry
Professionals working with transformer-supplied power or standard mains
Situations where tool protection and operator comfort are essential
Models are voltage-specific—ensure you order the correct variant (110 V or 240 V)
Always use discs rated for 12,000 rpm and 125 mm and wear appropriate safety gear
| Brand | Makita |
|---|---|
| No load speed | 2800 – 12000 min⁻¹ |
| Voltage | 110V |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 307 x 139 x 103 mm |
| Sound Power Level (LWA) | 93 dB(A) |
| Sound Pressure Level (LpA) | 85 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Continuous Input Power | 1400 W |
| Power Supply Cord | 2.5 m |
| Weight Without Cable | 2.4 - 3.5 kg |
| Bore Size (Arbor Diameter) | 22.23 mm |
| Grinding Disc Diameter | 125 mm |
| Dead Man's Switch (No Lock-On) | Yes |
| Spindle Thread | M14 |
| Vibration Level. Disc Sanding | ≤ 2.5 m/s² |
| Vibration Level. Surface Grinding | 10.0 m/s² |
