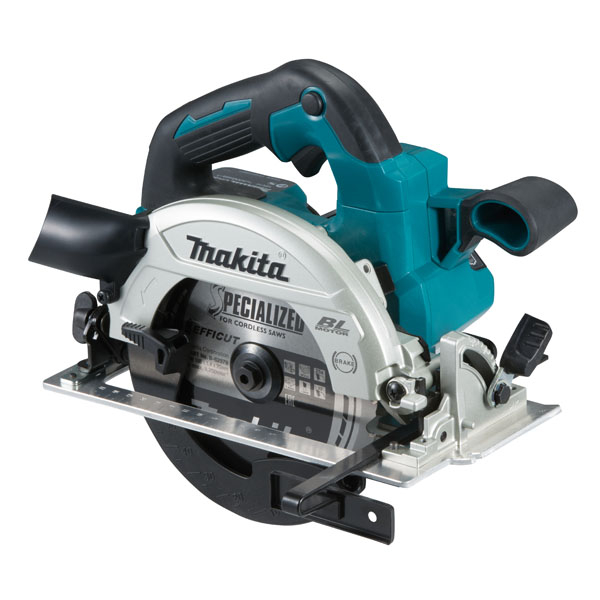

Makita DHS660Z 18V LXT Brushless Circular Saw – Compact 165mm Cutting with Precision and Power
The Makita DHS660Z is a high-performance 18V LXT brushless circular saw, designed for efficient, accurate cutting across wood and timber materials. With a 165mm blade, automatic torque drive, and lightweight, compact design, this saw is perfect for carpenters, fitters, and builders needing cordless freedom and professional cutting performance.
✅ Key Benefits:
165mm blade size – provides a max cutting depth of 57mm at 90°, 41mm at 45°, and 37mm at 50°
Brushless motor – ensures higher efficiency, longer runtime, and reduced maintenance
Automatic Torque Drive Technology (ADT) – adjusts speed and torque under load for optimal performance
Electric brake – for improved safety and immediate stop after trigger release
Compact & lightweight – only 270mm in length and 2.9kg with battery (not included)
Blower function – clears dust from the cut line for greater visibility
Ergonomic soft grip handle – designed for comfort and control during use
LED work light – illuminates the cutting area for accurate work in low light
Aluminium base plate – enhances stability and durability on the job
Compatible with Makita guide rails (with optional adapter – sold separately)
Compatible with all Makita 18V LXT batteries – part of the industry-leading LXT cordless platform
⚠️ Body only – battery, charger, and case not included. Compatible with all Makita 18V LXT batteries and chargers.
| Brand | Makita |
|---|---|
| Brushless Motor | Yes |
| No load speed | 5000 min⁻¹ |
| Voltage | 18V |
| Product Dimensions (L x W x H): | 270 x 186 x 250 mm |
| Sound Power Level (LWA) | 104 dB(A) |
| Sound Pressure Level (LpA) | 93 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vacuum cleaner connection Ø in / out | 35/40 mm |
| Max. Cutting Depth at 90° | 57 mm |
| Battery System | LXT |
| Bore Size (Arbor Diameter) | 20 mm |
| Max. Cutting Depth at 45° | 41 mm |
| Tool weight with battery | 2.9 - 3.2 kg |
| Nominal Battery Voltage | 18 V |
| Body Only | Yes |
| Body Only Machine | Yes |
| Blade Diameter | 165 mm |
| Voltage LXT | Yes |
| Max Output Power | 680 W |
| Max. Bevel Range (Left) | 0 / 50 º |
| Max. Cutting Depth at 50° | 37 mm |
| Vibration Level. Cutting Wood | ≤ 2.5 m/s² |
| Vibration Uncertainty (K Factor). Cutting Wood | 1.5 m/s² |
| Capacity 45° | 41 mm |
