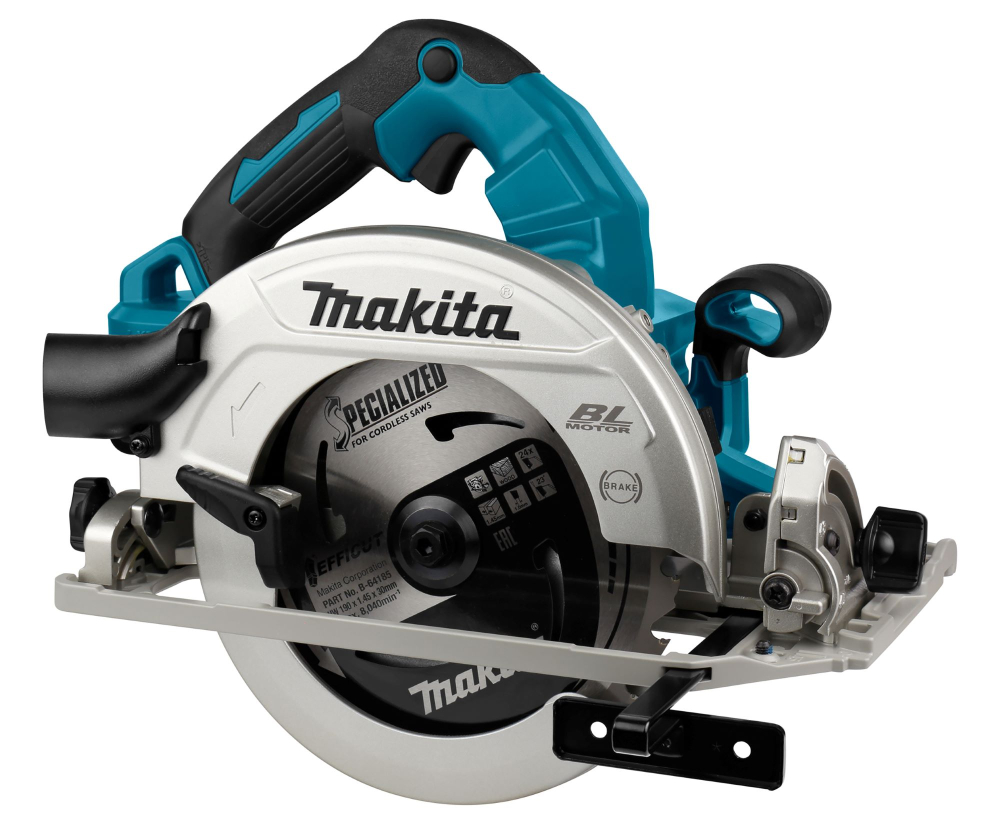

Makita DHS783ZJU 18Vx2 LXT Brushless Circular Saw – 190mm Cordless Cutting with AWS & Guide Rail Compatibility in Makpac Case
The Makita DHS783ZJU is a premium-grade 190mm cordless circular saw powered by two 18V LXT batteries for 36V output and equipped with a brushless motor for maximum cutting efficiency. It features AWS (Auto-Start Wireless System) for wireless dust extraction control, guide rail compatibility, and is supplied in a durable Makpac case, making it the ultimate cordless saw for precision and performance on demanding job sites.
✅ Key Benefits:
190mm blade diameter – delivers deep cutting capacity: 62.5mm at 90°, 44.5mm at 45°, 38.5mm at 48°
Powered by 2x 18V LXT batteries – provides 36V performance without the cord
Brushless motor – increases efficiency, battery runtime, and motor lifespan
AWS (Auto-Start Wireless System) – allows wireless communication with compatible dust extractors (Bluetooth chip included)
Automatic Torque Drive Technology (ADT) – automatically adjusts speed and torque under load
Guide rail compatible – works directly with Makita rails without an adapter
Electric brake & soft start – enhances safety and operator comfort
LED job light – brightens the cutting path for more accurate cuts
Blower function – keeps the cutting line free from dust and debris
Aluminium base plate – rigid and durable for smooth, controlled operation
XPT (eXtreme Protection Technology) – resists dust and moisture in harsh conditions
Supplied in Makpac Type 4 case – rugged and stackable for easy transport and storage
⚠️ Body only – batteries and charger not included. Requires 2x 18V LXT batteries to operate. AWS Bluetooth chip is included.
| Brand | Makita |
|---|---|
| Brushless Motor | Yes |
| No load speed | 6000 min⁻¹ |
| Voltage | 18V |
| Product Dimensions (L x W x H): | 348 x 210 x 290 mm |
| Sound Power Level (LWA) | 104 dB(A) |
| Sound Pressure Level (LpA) | 93 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vacuum cleaner connection Ø in / out | 35/40 mm |
| Max. Cutting Depth at 90° | 62.5 mm |
| Vibration Level. Cutting metal | ≤ 2.5 m/s² |
| Vibration Uncertainty (K Factor). Cutting metal | 1.5 m/s² |
| Battery System | LXT |
| Bore Size (Arbor Diameter) | 30 mm |
| Max. Cutting Depth at 45° | 44.5 mm |
| Tool weight with battery | 4.5 - 5.1 kg |
| Nominal Battery Voltage | 2x 18 V |
| Body Only | Yes |
| Body Only Machine | Yes |
| Blade Diameter | 190 mm |
| Voltage LXT | Yes |
| Max Output Power | 1800 W |
| Max. Bevel Range (Left) | 0 / 48 º |
| Vibration Level. Cutting Wood | ≤ 2.5 m/s² |
| Vibration Uncertainty (K Factor). Cutting Wood | 1.5 m/s² |
| Capacity 45° | 44.5 / 43.0 mm |
