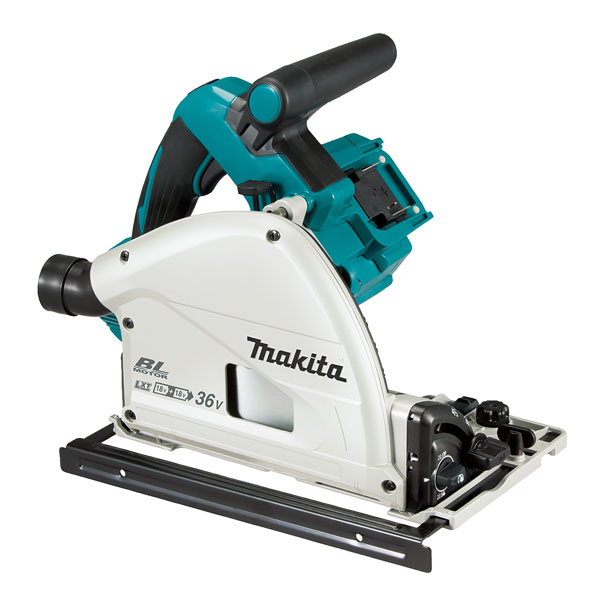

Makita DSP601ZJU 18Vx2 LXT Brushless Plunge Saw – 165mm Precision Cutting with AWS & Makpac Case
The Makita DSP601ZJU is a high-performance cordless plunge saw powered by two 18V LXT batteries, delivering 36V brushless power for clean, accurate cuts in sheet and solid materials. It features AWS (Auto-Start Wireless System) for seamless dust extraction control and is guide rail compatible for track saw accuracy. Supplied in a Makpac Type 4 case, it’s the ultimate portable solution for cabinetry, joinery, and finish carpentry.
✅ Key Benefits:
165mm blade diameter – offers a maximum cutting depth of 56mm at 90°, 40mm at 45°, and 38mm at 48°
Powered by 2x 18V LXT batteries – delivers 36V output without the cord
Brushless motor – ensures greater runtime, increased power, and less maintenance
AWS (Auto-Start Wireless System) – enables wireless communication with compatible dust extractors (Bluetooth chip included)
Automatic Torque Drive Technology (ADT) – adjusts cutting speed and torque under load for consistent performance
Guide rail compatible – fully compatible with Makita guide rail systems for straight, splinter-free cuts
Soft start & electric brake – smooth start-up and quick blade stop for improved safety
-1° to 48° bevel range – with positive stops at common cutting angles
Scoring function – minimises tear-out on laminate and veneered surfaces
LED job light – enhances visibility of the cut line
XPT (eXtreme Protection Technology) – improves dust and water resistance in harsh job site conditions
Supplied in Makpac Type 4 case – durable, stackable storage solution
⚠️ Body only – batteries, charger, and guide rail not included. Compatible with all Makita 18V LXT batteries. AWS Bluetooth chip included.
| Brand | Makita |
|---|---|
| Brushless Motor | Yes |
| No load speed | 2500 - 6300 min⁻¹ |
| Voltage | 18V |
| Product Dimensions (L x W x H): | 346 x 241 x 272 mm |
| Sound Power Level (LWA) | 103 dB(A) |
| Sound Pressure Level (LpA) | 92 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vacuum cleaner connection Ø in / out | 35/43 mm |
| Max. Cutting Depth at 90° | 56 mm |
| Vibration Level. Cutting metal | ≤ 2.5 m/s² |
| Vibration Uncertainty (K Factor). Cutting metal | 1.5 m/s² |
| Battery System | LXT |
| Bore Size (Arbor Diameter) | 20 mm |
| Max. Cutting Depth at 45° | 40 mm |
| Tool weight with battery | 4.4 - 5.1 kg |
| Nominal Battery Voltage | 2x 18 V |
| Body Only | Yes |
| Body Only Machine | Yes |
| Blade Diameter | 165 mm |
| Voltage LXT | Yes |
| AWS ready | Yes |
| Max. Bevel Range (Left) | - 1 / 48 º |
| Vibration Level. Cutting Wood | ≤ 2.5 m/s² |
| Vibration Uncertainty (K Factor). Cutting Wood | 1.5 m/s² |
| Max. Cutting Depth at 48° | 38 mm |
