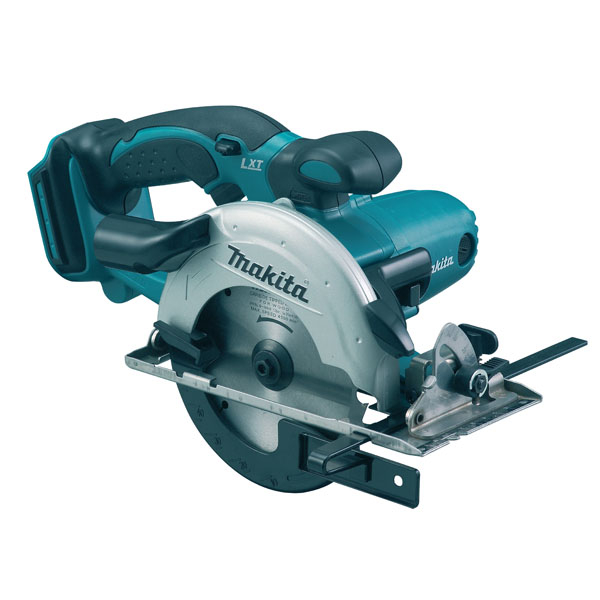

Makita DSS501Z 18V LXT Circular Saw – 136mm Compact Cordless Cutting for Precision and Portability
The Makita DSS501Z is a lightweight and compact 136mm cordless circular saw, ideal for quick and accurate cutting in wood and board materials. Powered by Makita’s 18V LXT battery system, it offers excellent manoeuvrability and control – making it perfect for second-fix carpentry, joinery, and general cutting where space is limited.
✅ Key Benefits:
136mm blade diameter – offers a maximum cutting depth of 51mm at 90°, and 35mm at 45°
Compact and lightweight design – just 2.7kg with battery (not included), ideal for overhead and one-handed operation
Electric brake – for rapid blade stop and increased job site safety
Double safety trigger – helps prevent accidental start-ups
Ergonomic soft-grip handle – ensures comfort during extended use
Blower function – clears sawdust from the cutting line for greater accuracy
LED job light – improves visibility in darker work environments
Dust extraction port – compatible with standard vacuums for cleaner cutting
Rigid aluminium base – provides durability and stable tracking
Compatible with all Makita 18V LXT batteries – integrates easily with your existing Makita tools
⚠️ Body only – battery, charger, and case not included. Compatible with all Makita 18V LXT batteries and chargers.
| Brand | Makita |
|---|---|
| No load speed | 3600 min⁻¹ |
| Voltage | 18V |
| Product Dimensions (L x W x H): | 364 x 183 x 201 mm |
| Sound Power Level (LWA) | 103 dB(A) |
| Sound Pressure Level (LpA) | 92 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vacuum cleaner connection Ø in / out | 25/31 mm |
| Max. Cutting Depth at 90° | 51 mm |
| Battery System | LXT |
| Bore Size (Arbor Diameter) | 20 mm |
| Max. Cutting Depth at 45° | 35 mm |
| Tool weight with battery | 2.4 - 2.7 kg |
| Nominal Battery Voltage | 18 V |
| Body Only | Yes |
| Body Only Machine | Yes |
| Blade Diameter | 136 mm |
| Voltage LXT | Yes |
| Max. Bevel Range (Left) | 0 / 50 º |
| Max. Cutting Depth at 50° | 30 mm |
| Vibration Level. Cutting Wood | ≤ 2.5 m/s² |
| Vibration Uncertainty (K Factor). Cutting Wood | 1.5 m/s² |
| Capacity 45° | 35 mm |
