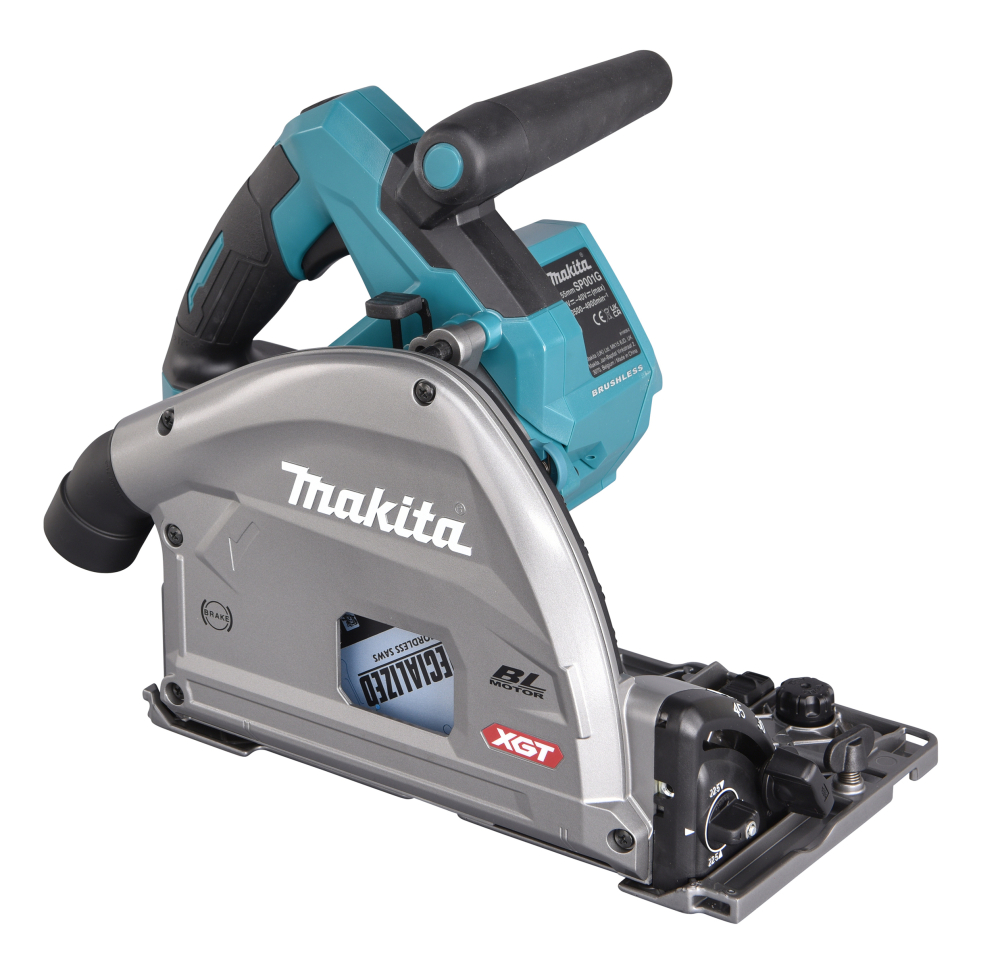

The Makita SP001GZ03 is a high-performance 40V Max XGT cordless plunge saw designed for precise and clean cuts in various materials. Equipped with a brushless motor, it delivers up to 4,900 RPM, ensuring efficient cutting performance. The saw features Auto-Start Wireless System (AWS) for seamless connectivity with compatible dust extractors, enhancing workplace cleanliness and safety.
✅ Key Benefits:
Brushless motor provides high efficiency and longer runtime
165mm blade offers a maximum cutting depth of 56mm at 90°, 40mm at 45°, and 38mm at 48°
Bevel capacity ranges from -1° to 48° with positive stops at 22.5° and 45°
Auto-Start Wireless System (AWS) enables wireless communication with compatible dust extractors
Electric brake and soft start features enhance safety and control
Variable speed control allows adjustment between 2,500 – 4,900 RPM for different materials
Compatible with Makita guide rails for accurate straight cuts
Extreme Protection Technology (XPT) offers improved dust and water resistance for operation in harsh conditions
Compact and lightweight design for easy handling and reduced operator fatigue
⚠️ Battery and charger not included. Compatible with all Makita 40V Max XGT batteries and chargers.
| Brand | Makita |
|---|---|
| Brushless Motor | Yes |
| No load speed | 2500 - 4900 min⁻¹ |
| Voltage | 40V |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 375 x 221 x 271 mm |
| Sound Power Level (LWA) | 100 dB(A) |
| Sound Pressure Level (LpA) | 89 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vacuum cleaner connection Ø in / out | 35/43 mm |
| Max. Cutting Depth at 90° | 56 mm |
| Vibration Level. Cutting metal | ≤ 2.5 m/s² |
| Battery System | XGT |
| Bore Size (Arbor Diameter) | 20 mm |
| Max. Cutting Depth at 45° | 40 mm |
| Tool weight with battery | 4.4 - 5.6 kg |
| Nominal Battery Voltage | 40V |
| Body Only | Yes |
| Body Only Machine | Yes |
| Voltage XGT | Yes |
| Blade Diameter | 165 mm |
| AWS ready | Yes |
| Max. Bevel Range (Left) | - 1 / 48 º |
| Vibration Level. Cutting Wood | ≤ 2.5 m/s² |
| Max. Cutting Depth at 48° | 38 mm |
