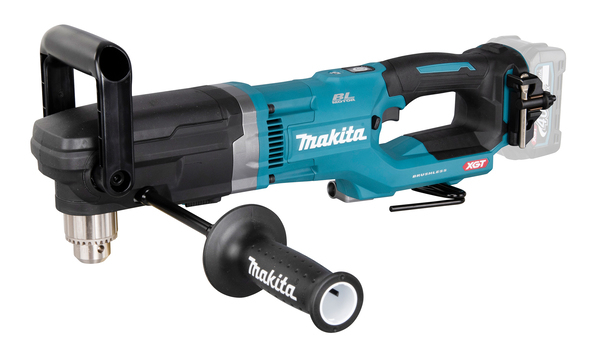

The Makita DA001GZ01 40V max XGT Angle Drill is engineered for demanding drilling applications in confined or awkward spaces. Powered by Makita’s cutting-edge XGT 40V max battery system, this tool delivers outstanding torque and efficiency – ideal for professional tradespeople who need power and precision where conventional drills can’t reach.
Its compact 90° head, high/low gear settings, and variable speed trigger make it the perfect tool for plumbing, electrical installations, framing, and heavy-duty carpentry. Built with durability and ergonomics in mind, this angle drill features anti-kickback technology and an automatic torque drive for optimal performance and user safety.
✅ Key Benefits:
High torque output powered by the robust 40V max XGT battery platform
90° compact angled head for access in tight or awkward workspaces
Two mechanical gears – High (0–1,400rpm) / Low (0–350rpm) for better control
Variable speed trigger with constant speed control for precision drilling
Active feedback sensing (AFT) automatically stops the motor in case of sudden bit lock
Automatic Torque Drive (ADT) adjusts torque and speed under load for maximum efficiency
Side handle and depth stop included for added stability and accuracy
LED light for improved visibility in dim work areas
Extreme Protection Technology (XPT) enhances dust and water resistance for tough job site conditions
⚠️ Battery and charger not included. Compatible with all Makita 40V max XGT batteries.
| Brand | Makita |
|---|---|
| Brushless Motor | Yes |
| No load speed | 0 - 1500 / 0 - 400 min⁻¹ |
| Voltage | 40V |
| Product Dimensions (L x W x H): | 545 x 128 x 199 mm |
| Product net weight | 4.6 kg |
| Sound Power Level (LWA) | 95 dB(A) |
| Sound Pressure Level (LpA) | 84 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Battery System | XGT |
| Tool weight with battery | 5.3 - 6.8 kg |
| Nominal Battery Voltage | 40 V |
| Body Only | Yes |
| Body Only Machine | Yes |
| Voltage XGT | Yes |
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) | Li-ion |
| Max. Drilling Diameter in Wood | 159 mm |
| Max. Drilling Diameter in Steel | 13 mm |
| Drill Chuck Capacity | 2 - 13 mm |
| Vibration Level. Drilling into metal | ≤ 2.5 m/s² |
| Vibration Uncertainty (K Factor). Drilling into metal | 1.5 m/s² |
| Max. Torque (2. Gear / 1. Gear) | 55 / 136 Nm |
| Drilling Capacity Wood (Self-feed bit) | 65 - 118 mm |
