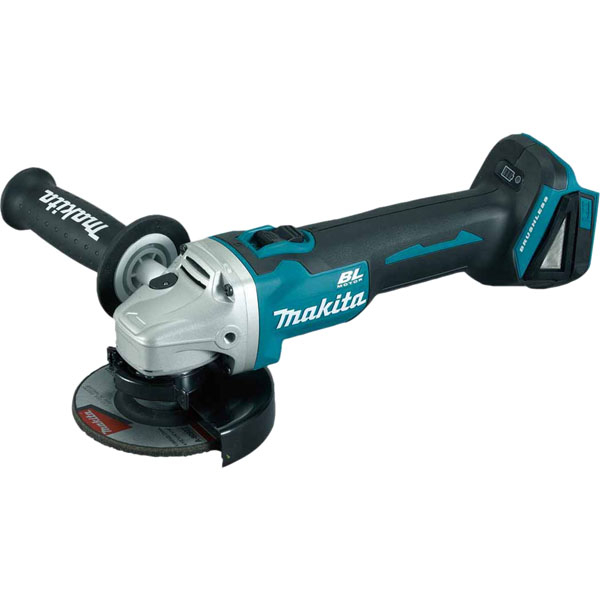

Makita DGA504Z 18V LXT Brushless 125mm Angle Grinder – Cordless Performance with Slide Switch Control
The Makita DGA504Z is a robust and reliable 125mm (5") cordless angle grinder powered by an 18V LXT battery and an efficient brushless motor. Built for tradespeople who need reliable performance without added complexity, this model features a slide switch for continuous operation and delivers fast, smooth grinding and cutting—without variable speed, for straightforward, powerful use across a range of materials.
✅ Key Benefits:
125mm wheel capacity – suitable for a wide range of grinding and cutting tasks
Brushless motor – increases power, runtime, and tool life with less maintenance
18V LXT battery compatible – cordless convenience with Makita’s trusted platform
Slide switch with lock-on – ideal for longer grinding sessions with consistent control
High rotation speed – up to 8,500rpm for efficient material removal
Soft start and anti-restart – enhances safety and prevents accidental starts
Compact and ergonomic design – lightweight for overhead or tight-space work
No variable speed – simple, reliable, full-speed grinding for consistent results
Ideal for metalwork, construction, plumbing, and general-purpose site use
⚠️ Body only – battery, charger, and accessories not included. Fully compatible with all Makita 18V LXT batteries.
| Brand | Makita |
|---|---|
| Brushless Motor | Yes |
| No load speed | 8500 min⁻¹ |
| Voltage | 18V |
| Product Dimensions (L x W x H): | 362 x 140 x 145 mm |
| Sound Power Level (LWA) | 90 dB(A) |
| Sound Pressure Level (LpA) | 82 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Battery System | LXT |
| Bore Size (Arbor Diameter) | 22.23 mm |
| Tool weight with battery | 2.2 - 2.5 kg |
| Nominal Battery Voltage | 18 V |
| Max. Depth of Cut | 29 mm |
| Grinding Disc Diameter | 125 mm |
| Body Only | Yes |
| Body Only Machine | Yes |
| Voltage LXT | Yes |
| Spindle Thread | M14 |
| Anti-Restart Function (NVR Switch) | Yes |
| Vibration Level. Disc Sanding | ≤ 2.5 m/s² |
| Vibration Uncertainty (K Factor). Disc Sanding | 1.5 m/s² |
| Vibration Level. Surface Grinding | 6.5 m/s² |
| Vibration Uncertainty (K Factor). Surface Grinding | 1.5 m/s² |
