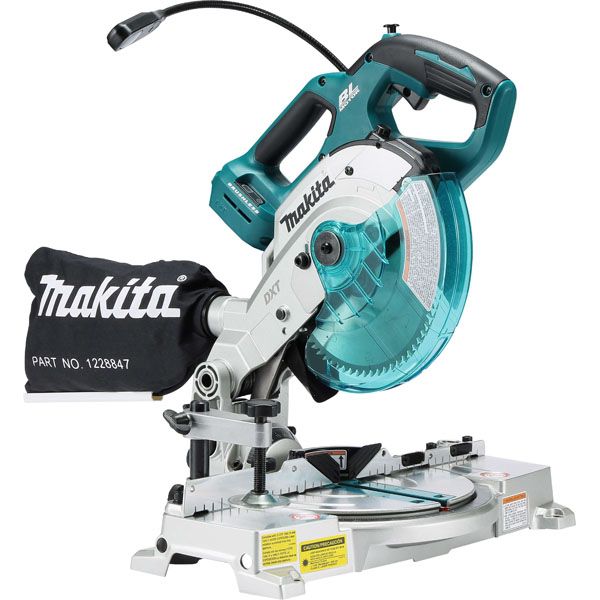

Makita DLS600Z 18V LXT Brushless Mitre Saw – Ultra-Compact 165mm Cordless Precision for Lightweight Site Work (Body Only)
The Makita DLS600Z is an ultra-compact 165mm (6-1/2") cordless mitre saw, built for maximum portability without compromising cutting accuracy. Powered by a high-efficiency brushless motor and the Makita 18V LXT platform, this saw is perfect for quick, precise crosscuts, trims, and finish carpentry in confined workspaces or on the go. Its lightweight design, single-bevel function, and adjustable mitre angles make it the ideal solution for second fix, trim, and domestic fit-out work.
✅ Key Benefits:
165mm blade diameter – ideal for precision crosscuts and light-duty framing
Brushless motor – enhances cutting performance, runtime, and tool longevity
18V LXT battery compatible – fully cordless, fits all Makita 18V LXT batteries (sold separately)
Mitre range: 0–52° left and 0–60° right – wide-angle range for versatile mitre cuts
Bevel range: 0–46° left only – convenient single-bevel design for angled trims
Laser guide – for accurate line alignment and clean cuts
Electric brake – for quick and safe blade stopping
Soft start – ensures smooth, controlled start-up
Dust collection port – can be connected to a vacuum for a cleaner work environment
Compact and lightweight (approx. 6.6kg) – perfect for transport, setup, and overhead applications
Ideal for finish carpentry, flooring, moulding, and window trim
⚠️ Body only – battery, charger, and stand not included. Fully compatible with all Makita 18V LXT batteries.
| Brand | Makita |
|---|---|
| Brushless Motor | Yes |
| No load speed | 5000 min⁻¹ |
| Voltage | 18V |
| Vibration Level (3 axes) | ≤ 2.5 m/s² |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 340 x 400 x 440 mm |
| Sound Power Level (LWA) | 97 dB(A) |
| Sound Pressure Level (LpA) | 90 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vacuum cleaner connection Ø in / out | 32/37 mm |
| Battery System | LXT |
| Bore Size (Arbor Diameter) | 20 mm |
| Tool weight with battery | 6.3 - 6.6 kg |
| Nominal Battery Voltage | 18 V |
| Body Only | Yes |
| Body Only Machine | Yes |
| Blade Diameter | 165 mm |
| Voltage LXT | Yes |
| Max. Bevel Range (Left) | 46 / 46 º |
| Capacity 45° | 46 x 65 mm |
| Capacity 90° | 46 x 92 mm |
| Max. Mitre Range (Left) | 52 / 52 º |
| Laser Class | 2M |
