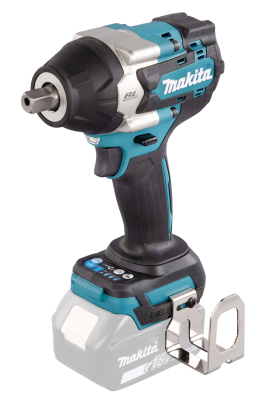

Makita DTW701Z 18V LXT Brushless Impact Wrench – 700Nm High Torque with Pin Detent Socket Retention (Body Only)
The Makita DTW701Z is a high-powered 18V LXT brushless impact wrench delivering up to 700Nm of tightening torque and 1,000Nm of breakaway torque in a compact, cordless design. Built for heavy-duty fastening applications, it features a ½" square drive with pin detent for extra-secure socket retention—ideal for industrial, construction, and automotive tasks. With 4-speed electronic control, auto-stop and reverse modes, and Extreme Protection Technology (XPT), the DTW701Z combines brute strength with smart precision and durability.
✅ Key Benefits:
700Nm fastening torque / 1,000Nm nut-busting torque – handles the most demanding jobs
Brushless motor – increases power efficiency and tool longevity
18V LXT battery platform – compatible with all Makita 18V LXT batteries (sold separately)
½" square drive with pin detent – secure socket retention in high-vibration applications
4-speed power selection (0–1,000 / 1,800 / 2,600 / 3,200 rpm) – for full control across applications
Auto-stop and reverse rotation auto-stop modes – prevent over-tightening and dropped fasteners
Electric brake + variable speed trigger – for responsive, safe control
Twin LED job lights with pre-glow and after-glow – illuminate your workspace
Compact and ergonomic (170mm length) – ideal for confined or overhead work
Extreme Protection Technology (XPT) – enhanced resistance to dust and water
⚠️ Body only – battery, charger, and sockets not included. Fully compatible with all Makita 18V LXT batteries.
| Brand | Makita |
|---|---|
| Brushless Motor | Yes |
| No load speed | 0 - 500 / 1200 / 1900 / 2200 min⁻¹ |
| Voltage | 18V |
| Vibration Uncertainty (K Factor) | 2.0 m/s² |
| Product Dimensions (L x W x H): | 170 x 81 x 276 mm |
| Product net weight | 2.0 kg |
| Sound Power Level (LWA) | 105 dB(A) |
| Sound Pressure Level (LpA) | 94 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Battery System | LXT |
| Tool weight with battery | 2.3 - 2.7 kg |
| Nominal Battery Voltage | 18 V |
| Body Only | Yes |
| Body Only Machine | Yes |
| Voltage LXT | Yes |
| Max Output Power | 430 W |
| Impacts per Minute (IPM) | 0 - 1000 / 1700 / 2400 / 2700 min⁻¹ |
| Max Fastening Torque Impact Drill | 150 / 200 / 320 / 700 Nm |
| Tightening Capacity Standard Bolt | M10 - M24 |
| Vibration Level. Impact Tightening of Fasteners of the Maximum Capacity of the Tool | 19.0 m/s² |
| Drive Square | 1/2 " |
| Nut-busting torque | 1000 Nm |
