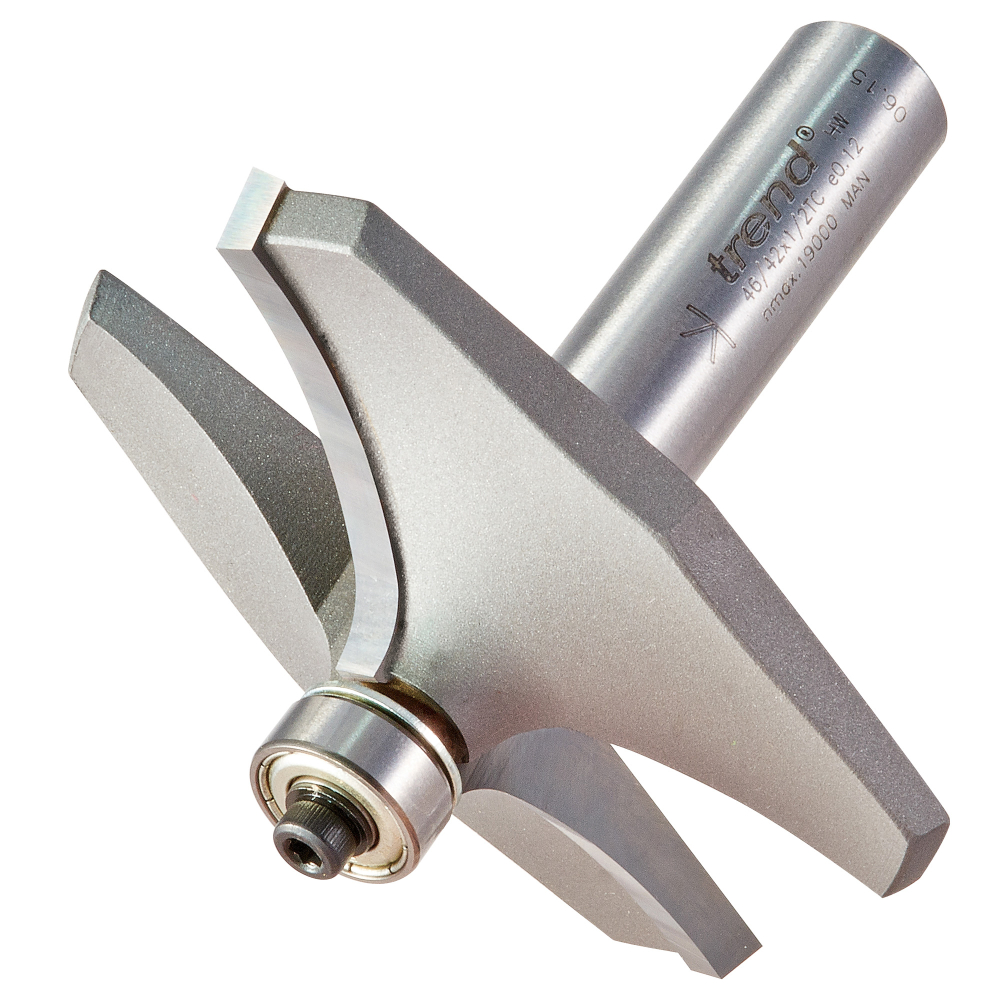

Trend 46/42X1/2TC Guided thumb mould cutter

Stock Code: 46_42X1_2TC
Available to Order
£167.65 (inc VAT) per each
£139.71 (exc VAT)
Quantity: - +
Guided thumb mould cutter. D=69.2 mm|C=16 mm|B=9.5 mm |B2= 12.7 mm|R=44 mm|OL=76 mm|Shank Diameter=1/2 inch|For stationary machines at max. recommended speed 12,000 RPM A quarter ellipse cutter for architraves and hand rails. |Can be used to form the top portion of handrail moulding when used in conjunction with Ref. 93/3.
BrandTrend
Shank Diameter1/2"
Diameter mm69.2
Cut Length mm16
Overall Length mm76
Bearing Diameter mm9.5
Bearing Diameter Imperial3/8"
Radius 1 mm44

There are no downloads for this product.
