The Makita 8406X is a versatile and robust diamond core and percussion drill designed for trade professionals needing reliable performance across masonry, brick, blockwork, and more. Built with a powerful 850W motor and 2-mode functionality (rotary only / rotary with hammer), it’s ideal for both general drilling tasks and dry diamond core applications up to 152mm in masonry.
This drill features a variable-speed trigger and torque limiter clutch, offering precise control and safety during demanding work. The rotary-only mode is ideal for diamond core drilling, while the hammer-drill mode makes quick work of tougher materials when using standard masonry bits. The 8406X includes a side handle for stability, durable construction, and a carry case—making it site-ready from day one.
Available in both 110V (for site use) and 240V (standard mains), this drill is suited for all professional environments.
2-Mode Function: Choose between rotary only or rotary with hammer for total job versatility
850W Motor: Powerful and reliable for demanding core or percussion drilling
Diamond Core Ready: Handles dry cores up to Ø152mm (rotary only mode)
Torque Limiter Clutch: Prevents gear damage and protects the operator from bit snags
Variable Speed Control: Smooth starting and precision for all material types
Reversible Function: Assists in bit removal or backing out
Side Handle and Depth Stop: Improves control and drilling accuracy
Robust Build: Proven Makita reliability for trade environments
Supplied with Carry Case for protection and easy transport
Available in 110V or 240V to suit site or domestic setups

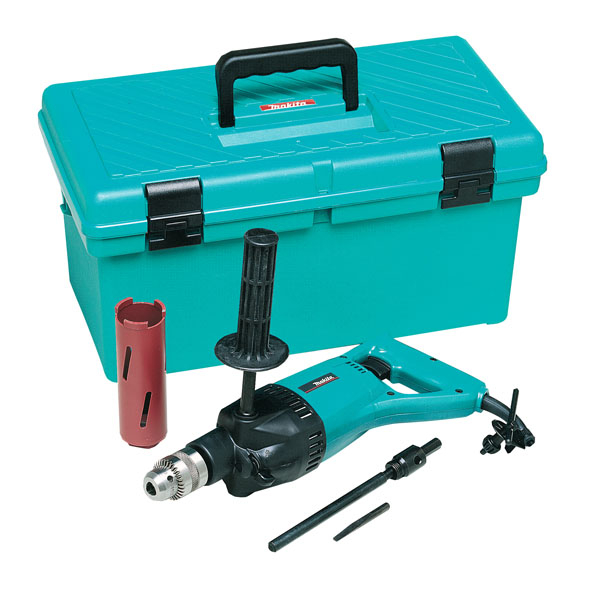

1x Makita 8406X Diamond Core & Hammer Drill (Choose 110V or 240V)
1x Side Handle
1x Depth Gauge
1x Chuck Key
1x Heavy-duty Carry Case
Professional core drilling in brickwork or block
General construction drilling and light chiselling
Site use (110V) or workshop/domestic environments (240V)
This unit does not include diamond core bits – available separately
Ensure correct voltage selection (110V or 240V) to match your power supply
| Brand | Makita |
|---|---|
| No load speed | 0 - 1500 min⁻¹ |
| Voltage | 240V |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 400 x 150 mm |
| Sound Power Level (LWA) | 105 dB(A) |
| Sound Pressure Level (LpA) | 94 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Continuous Input Power | 850 W |
| Power Supply Cord | 2.5 m |
| Weight Without Cable | 3.7 kg |
| Max. Drilling Diameter in Wood | 30 mm |
| Max. Drilling Diameter in Steel | 13 mm |
| Drill Chuck Capacity | 2 - 13 mm |
| Impacts per Minute (IPM) | 0 - 22500 min⁻¹ |
| Max. Drilling Diameter in Masonry | 20 mm |
| Vibration Level. Impact Drilling into Concrete | 9.5 m/s² |
| Max. Drilling Diameter in Concrete | 152 mm |
