The Makita 8406X3 is a professional diamond core and hammer drill kit combining the high-performance 8406 drill with a dry diamond core bit set and accessories — all neatly packed in a robust carry case. Designed for heavy-duty construction and installation work, this kit is ideal for tradespeople needing a turnkey solution for drilling large holes in brick, block, and masonry.

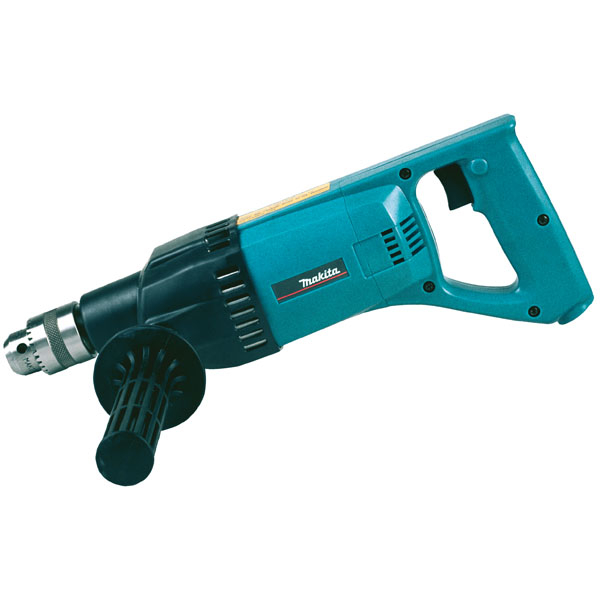

At its core is the powerful 850W Makita 8406 drill, featuring rotary-only and rotary hammer modes, a torque limiter clutch, and variable speed control for safety and precision. The 8406X3 enhances this with a set of 3 premium dry diamond cores (38mm, 52mm, and 65mm) and accessories, enabling efficient work across plumbing, heating, ventilation, and cable installation jobs.
Available in both 110V (site-safe) and 240V (standard mains) versions, the Makita 8406X3 is the ideal complete kit for professionals.
Complete Diamond Core Kit: Includes 3x dry diamond cores and key accessories
2-Mode Function: Rotary-only for diamond core work; rotary + hammer for masonry drilling
Powerful 850W Motor: Proven Makita reliability with torque limiter for operator protection
Dry Core Capacity: Up to Ø152mm with supplied accessories covering popular sizes
Side Handle, Depth Stop & Chuck Key for better control and user convenience
Variable Speed and Reverse Function: Precision control for accurate and safe drilling
Durable Heavy-duty Case: Keeps drill and accessories organised and protected
Voltage Options: 110V for on-site safety or 240V for workshop/mains use
1x Makita 8406 Diamond Core & Hammer Drill (110V or 240V)
3x Dry Diamond Core Bits (38mm, 52mm, 65mm)
1x A-Taper Adaptor
1x Drift Key
1x Hex Key
1x Chuck Key
1x Side Handle
1x Depth Gauge
1x Heavy-duty Carry Case
Core drilling through brick and block (electrical, plumbing, HVAC)
Construction and fixings installation
Site (110V) and domestic (240V) work
Supplied cores are dry use only – not suitable for reinforced concrete
Ensure correct voltage selection (110V or 240V) for your intended environment
| Brand | Makita |
|---|---|
| No load speed | 0 - 1500 min⁻¹ |
| Voltage | 110V |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 400 x 150 mm |
| Sound Power Level (LWA) | 105 dB(A) |
| Sound Pressure Level (LpA) | 94 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Continuous Input Power | 850 W |
| Power Supply Cord | 2.5 m |
| Weight Without Cable | 3.7 kg |
| Max. Drilling Diameter in Wood | 30 mm |
| Max. Drilling Diameter in Steel | 13 mm |
| Drill Chuck Capacity | 2 - 13 mm |
| Impacts per Minute (IPM) | 0 - 22500 min⁻¹ |
| Max. Drilling Diameter in Masonry | 20 mm |
| Vibration Level. Impact Drilling into Concrete | 9.5 m/s² |
| Max. Drilling Diameter in Concrete | 152 mm |
