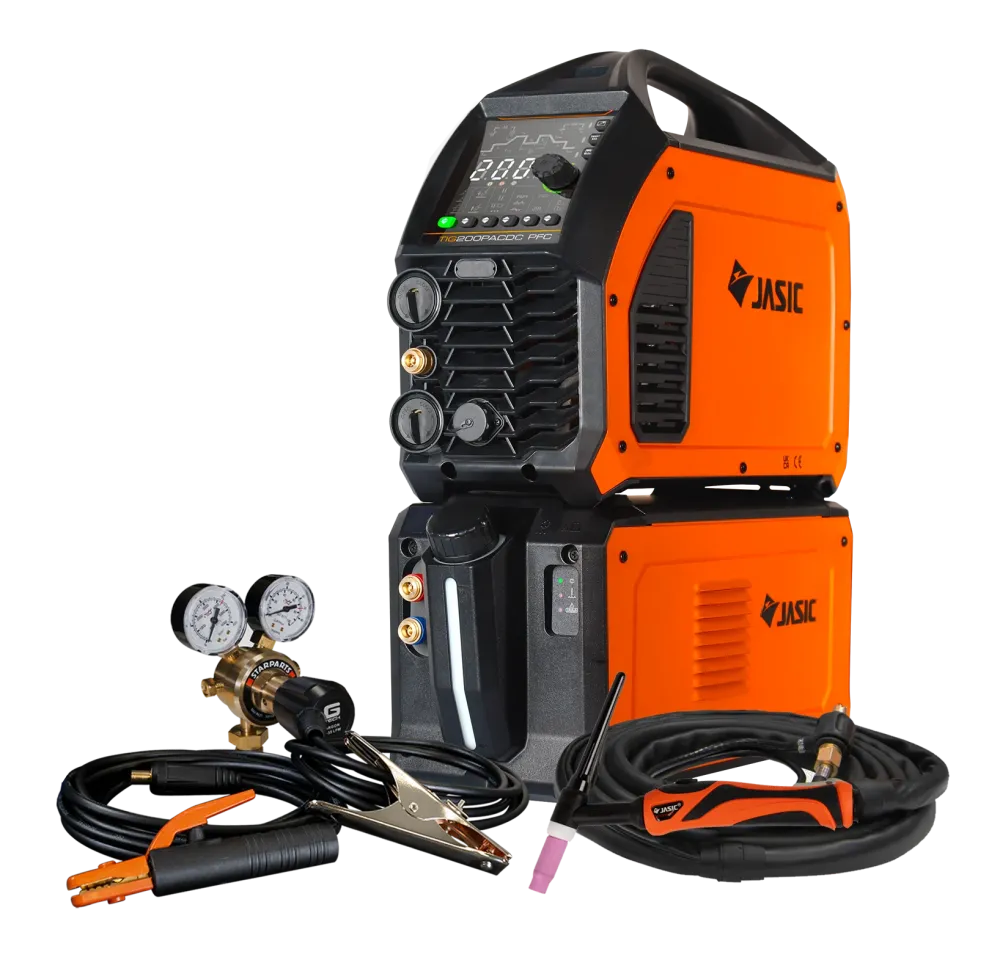

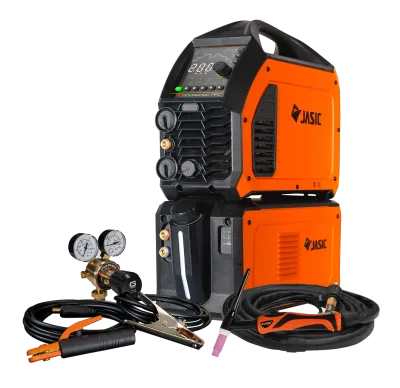

The Jasic EVO TIG 200P AC/DC PFC Pulse Inverter (Water Cooled) is a professional-grade precision TIG welding system designed for AC and DC TIG welding with Pulse control, as well as MMA (Stick) welding. Built with advanced IGBT inverter technology and Power Factor Correction (PFC), it delivers exceptional arc stability, high efficiency, and superior heat control, even during prolonged welding cycles.
Featuring a water-cooled torch system, this model is ideal for extended TIG welding on aluminium, stainless steel, mild steel, and specialist alloys, where continuous operation and torch cooling are critical. With AC balance and frequency adjustment, pulse TIG functionality, and Lift TIG ignition, the EVO TIG 200P offers precise control for high-quality, professional weld finishes in fabrication, motorsport, and production environments.
✅ Key Features & Benefits:
AC/DC TIG welding capability – suitable for aluminium and steel applications
Pulse TIG function – improved heat control, penetration, and weld appearance
Water-cooled system – ideal for prolonged TIG welding and reduced torch heat
Power Factor Correction (PFC) – efficient performance on long leads or unstable supplies
Advanced IGBT inverter technology – smooth, stable, and consistent arc
AC balance & frequency control – precise tuning for aluminium welding
Lift TIG & MMA (Stick) modes – versatile multi-process functionality
EVO Series professional build – engineered for durability and precision
⚙️ Technical Specifications:
Model: EVO TIG 200P AC/DC PFC (Water Cooled)
Input Voltage: 230V 1~ 50/60Hz (PFC)
Output Current (TIG): 5–200A
Output Current (MMA): 10–160A
Duty Cycle: 200A @ 35%
Processes: AC TIG, DC TIG, Pulse TIG, MMA
AC Balance Control: Yes
AC Frequency Adjustment: Yes
Cooling: Water Cooled
Protection Class: IP21S
Weight: Approx. 16 kg (excluding cooler)
Efficiency: >85%
📦 Package Contents:
1 × Jasic EVO TIG 200P AC/DC PFC Inverter
1 × Water-Cooled TIG Torch
1 × Water Cooler
1 × Earth Clamp with Cable
1 × Gas Hose
1 × User Manual
⚠️ Important Information:
Suitable for aluminium, stainless steel, mild steel, and alloy welding
Operates from standard 230V single-phase supply with PFC
Water-cooled system recommended for extended TIG welding periods
Always use appropriate PPE and ensure adequate ventilation
