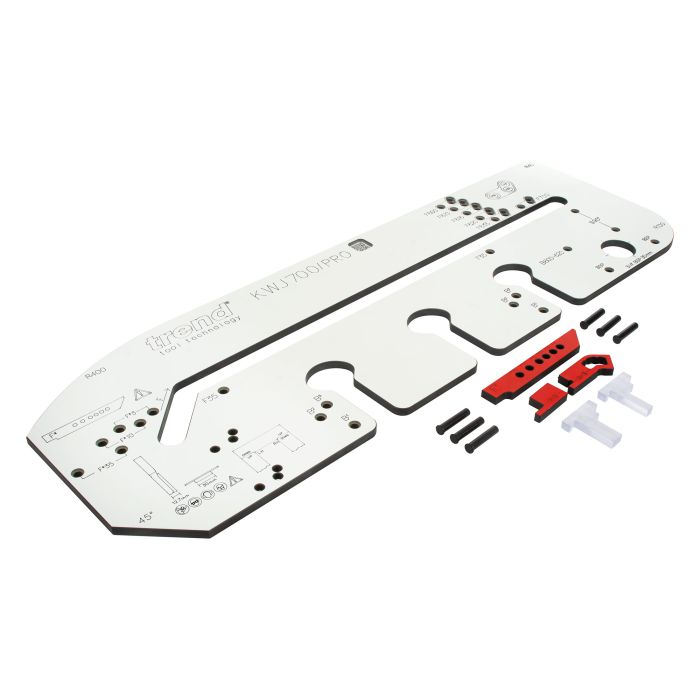

700mm Professional Multi-Material Worktop Jig. Length=1010 mm|Width=340 mm|Thickness=12 mm|Weight=5.5 kg|Insets=3/10/35 mm|Backsets=600/610/616/620/635/700 mm|Bolt Recesses=3|Bolt Recess Centres=175 mm|Corner Radius=40/100 mm|Peninsular Radius=400 mm|Requires:|Guide Bush=30 mm|Router Cutter=12.7mm dia. x 50 mm length|Plunge Router=1/2inch|F-Clamps=min. 80 mm throat x 2 A universal worktop jig for routing mitre joints in laminated, timber and compact laminate surfaces. Features 3mm, 10mm and 35mm inset options, and innovative front edge alignment technology for scribed, out-of-square and non-standard worktops.|Front Edge Alignment Technology* accurately positions the jig directly to the start of the mitre joint to accommodate any worktop width.|Narrow Inset T-Gauges create 3mm and 10mm insets quickly and easily. Perfect for square-edged and modern bullnose worktops; narrow insets give a cleaner aesthetic, prevent cutter wear, and improve cordless router runtime.|Male Cut-Line Positioning Devices* allow the jig to be positioned directly to the male cut line and remove the need for complex length, angle and offset calculations. Ideal for trapped and out-of-square installations.|Preset Connector Bolt Recesses accommodate all standard worktop bolt sizes, including Zipbolt and Unika Slimline connection bolts.|Indexed Backsets for 600, 610, 616, 620, 635, and 700mm worktops for standard 90 installations. |400mm Radius for breakfast bar and peninsula trimming.|R100mm, R40mm and 45 Corners for edge finishing.|90 Straight Cuts for accurate skimming and trimming.|35mm Hinge / ? BSP Recess for surface-mount monobloc tap and concealed hinge installation.|CNC-Machined Compact Grade HPL provides precision, strength and durability|8mm Radius Gauge ensures worktops are suitable for a 10mm narrow inset.|8.65mm Marking Gauge helps to perfectly position the jig for peninsula, radius and 45 corner finishing.|*Patent Pending. See www.trend-uk.com/patent for information.
