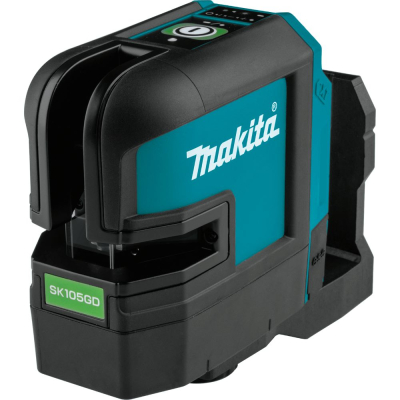

Makita SK105GDZ 12V Max Green Cross Line Laser – CXT Body Only
The Makita SK105GDZ is a high-visibility green cross line laser, part of the 12V Max CXT platform, designed for accurate horizontal and vertical alignment in a wide range of interior construction and layout tasks. Offering better visibility than red lasers, this tool is ideal for tiling, framing, cabinetry, partitioning, and electrical installation.
With automatic self-levelling, pulse mode for detector compatibility, and a robust housing rated IP54, the SK105GDZ is built for tough site conditions. It delivers exceptional accuracy with clear, bright laser lines that remain visible even in well-lit environments.
✅ Key Benefits:
Green cross line laser – significantly more visible than red in bright conditions
Projects one horizontal and one vertical line – for layout and levelling
Powered by 12V Max CXT batteries – compact, efficient cordless solution
Self-levelling within ±4° – quick and accurate setup on uneven surfaces
Pulse mode – allows use with a compatible laser detector for outdoor/long-range use
Working range: 35m (up to 80m with detector)
±3mm at 10m accuracy – ensures professional results
IP54 rated – splash and dust resistant for rugged jobsite conditions
Integrated swivel base with strong magnets – easy attachment to metal surfaces
Compact and lightweight (0.52kg) – perfect for everyday site tasks
📦 Kit Contents:
1x Makita SK105GDZ Green Cross Line Laser
1x Magnetic Mounting Adapter
1x Target Plate
1x Instruction Manual
⚠️ Please Note:
Body only – battery and charger not included. Compatible with all Makita 12V Max CXT batteries and chargers.
| Brand | Makita |
|---|---|
| Voltage | 12V |
| Product Dimensions (L x W x H): | 138 x 64 x 102 mm |
| Product net weight | 0.46 kg |
| Battery System | CXT |
| Tool weight with battery | 0.67 - 0.84 kg |
| Nominal Battery Voltage | 12 V |
| Body Only | Yes |
| Body Only Machine | Yes |
| Voltage CXT | Yes |
| Continuous Use 12Vmax / 2.0 Ah Battery | 10 h |
| Continuous Use 12V Max / 4.0 Ah Battery | 20 h |
| Spindle Thread | 1/4". 5/8" |
| Laser Class | 2 |
| International Protection Class (IP) | IP54 |
| Measuring range | 35 (80) m |
| Average Accuracy (2s) of Length Measurement | ± 3 mm / 10 m |
| Usage temperature | -10 - 50 °C |
| Levelling Range | ±4 º |
| Laser Colour | Green |
