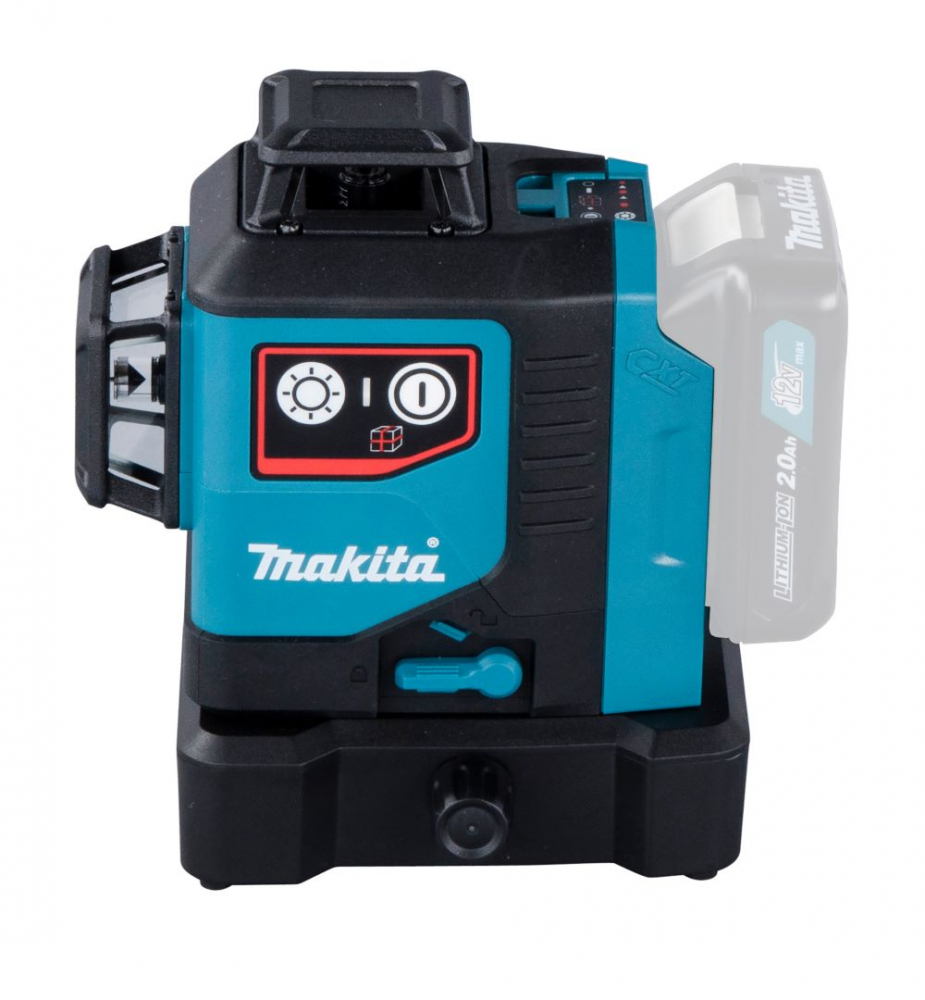

Makita SK700DZ 12V Max Red Multi-Line Laser – CXT Body Only
The Makita SK700DZ is a professional-grade 12V Max CXT red laser designed for accurate layout and levelling on interior construction sites. With 3 x 360° red laser lines (1 horizontal and 2 vertical), it delivers complete coverage for alignment and layout tasks such as partitioning, tiling, ceiling work, HVAC, and electrical installation.
Engineered for precise measurement, the SK700DZ features ±2mm accuracy at 10m, self-levelling, and a pulse mode for use with a compatible laser detector. It’s built to Makita’s high standards with an IP54-rated casing, making it ideal for tough jobsite environments.
✅ Key Benefits:
Projects 1 x 360° horizontal + 2 x 360° vertical red laser lines
Full room coverage for alignment on walls, floors, and ceilings
Complete 360° multi-plane layout capability
Ideal for multi-surface levelling and interior fit-outs
Red laser technology – cost-effective, highly visible in standard indoor lighting
Self-levelling within ±4° – quick setup with precision levelling
Pulse mode – extend working range with a laser detector (up to 80m)
±2mm at 10m accuracy – professional-grade precision
Individual laser line selection – control horizontal and vertical modes separately
Compact and lightweight (approx. 1.5kg) – durable and portable for daily site use
Compatible with 12V Max CXT battery platform – cordless freedom with CXT battery integration
Magnetic mount and tripod thread – adaptable mounting on metal surfaces and standard tripods
IP54 rated – dust and splash resistant for jobsite durability
📦 Kit Contents:
1x Makita SK700DZ Red Multi-Line Laser
1x Magnetic Mount Adapter
1x Target Plate
1x Instruction Manual
⚠️ Please Note:
Body only – battery and charger not included. Compatible with all Makita 12V Max CXT batteries and chargers.
| Brand | Makita |
|---|---|
| Voltage | 12V |
| Product Dimensions (L x W x H): | 168 x 104 x 153 mm |
| Battery System | CXT |
| Tool weight with battery | 0.99 - 1.2 kg |
| Nominal Battery Voltage | 12 V |
| Body Only | Yes |
| Body Only Machine | Yes |
| Voltage CXT | Yes |
| Continuous Use 12Vmax / 2.0 Ah Battery | 11 h |
| Continuous Use 12V Max / 4.0 Ah Battery | 22 h |
| Spindle Thread | 1/4". 5/8" |
| Laser Class | 2 |
| International Protection Class (IP) | IP54 |
| Measuring range | 25 (70) m |
| Average Accuracy (2s) of Length Measurement | ± 2 mm / 10 m |
| Usage temperature | -10 - 50 °C |
| Levelling Range | ±4 º |
| Laser Colour | Red |
