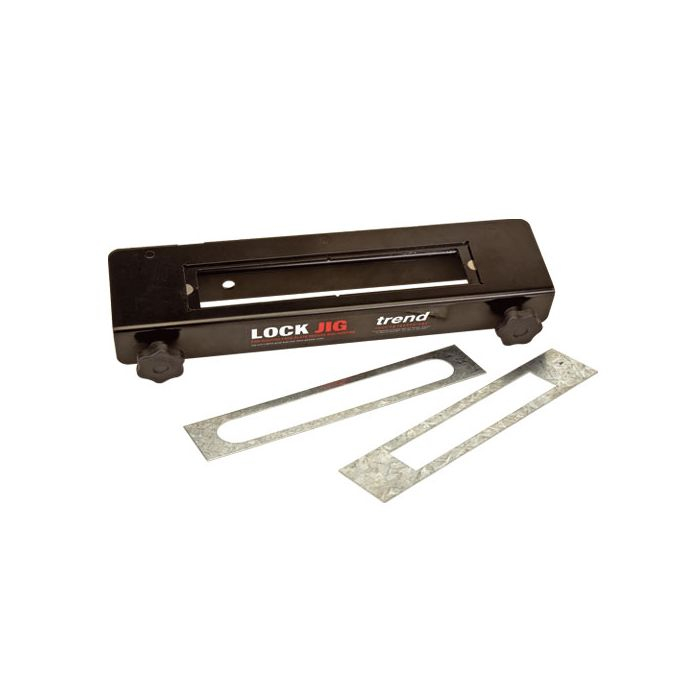

Lock Jig Large . Door thickness min.=34 mm|Door thickness max.=58 mm|Lock faceplate sizes|Metric (D x OL)=Template|20 x 235mm (RE**)=1|24 x 235mm (RE**)=2|Lock mortise size|17 x 170mm*=A|*Mortise is actually 180mm to give 5mm clearance each end.|**Rounded ends Contractor jig with interchangeable templates for use with a plunge router to cut the mortise & face-plate for larger locks quickly & accurately.|Suitable for DDA (Disabilty Discrimination Act) lock size. |20mm x 235mm radius end face plate, 24mm x 235mm radius end face plate and 17mm x 170mm mortise.|Adaptor plate included to allow smaller templates (239mm x 60mm) to be fitted (as supplied with standard LOCK/JIG).|Suitable for doors 34mm to 58mm thick.|An auger bit and drill is required to complete deep mortises.|The jig requires a 1/2- inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise.|Suits DIN style locks.
