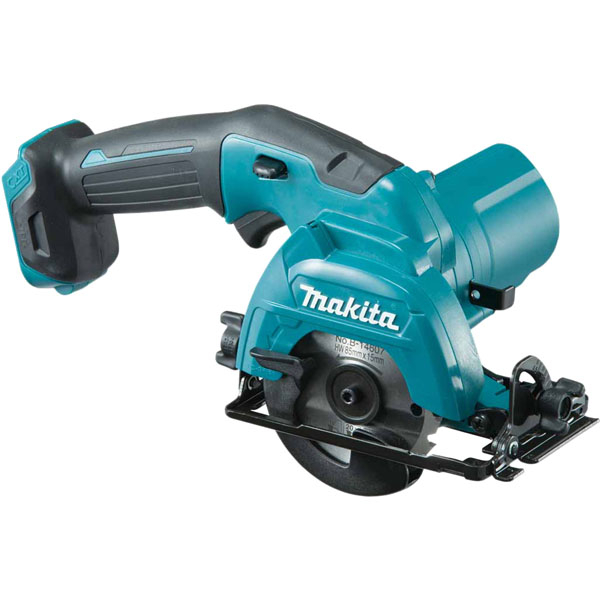

Makita HS301DZ 12V Max CXT Circular Saw (85mm) – Body Only
The Makita HS301DZ is a compact and cordless 85mm circular saw, designed for precise light-duty cutting in timber, MDF, plywood, and other sheet materials. As part of the 12V Max CXT platform, it’s ideal for professionals working in tight spaces, overhead, or on the move — delivering convenience without sacrificing control.
With a cutting depth of 25.5mm at 90° and 16.5mm at 45°, the HS301DZ is perfect for trimming, shelving, and panel work. Features such as a built-in dust blower, bevel capacity, and LED job light make it an excellent choice for interior and finishing tasks.
✅ Key Benefits:
Body only – battery and charger sold separately
85mm blade diameter – suitable for light-duty precision cuts
Cutting depth: 25.5mm at 90°, 16.5mm at 45°
Bevel cutting up to 45° – for angled and mitre cuts
Built-in blower – clears the cutting line for better accuracy
LED work light – improves visibility in low-light conditions
Compact and lightweight – only 1.6kg with battery installed
Compatible with all Makita 12V Max CXT batteries
⚠️ Please Note:
This is a body-only model. Battery and charger are not included. Always use the correct blade type and PPE for the material you’re cutting.
| Brand | Makita |
|---|---|
| No load speed | 1500 min⁻¹ |
| Voltage | 12V |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 313 x 170 x 155 mm |
| Sound Pressure Level (LpA) | 86 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vacuum cleaner connection Ø in / out | 25/31 mm |
| Max. Cutting Depth at 90° | 25.5 mm |
| Battery System | CXT |
| Bore Size (Arbor Diameter) | 15 mm |
| Max. Cutting Depth at 45° | 16.5 mm |
| Rake angle | 45° |
| Tool weight with battery | 1.6 - 1.7 kg |
| Nominal Battery Voltage | 12 V |
| Body Only | Yes |
| Body Only Machine | Yes |
| Blade Diameter | 85 mm |
| Voltage CXT | Yes |
| Max. Bevel Range (Left) | 0 / 45 º |
| Vibration Level. Cutting Wood | ≤ 2.5 m/s² |
| Capacity 45° | 16.5 mm |
