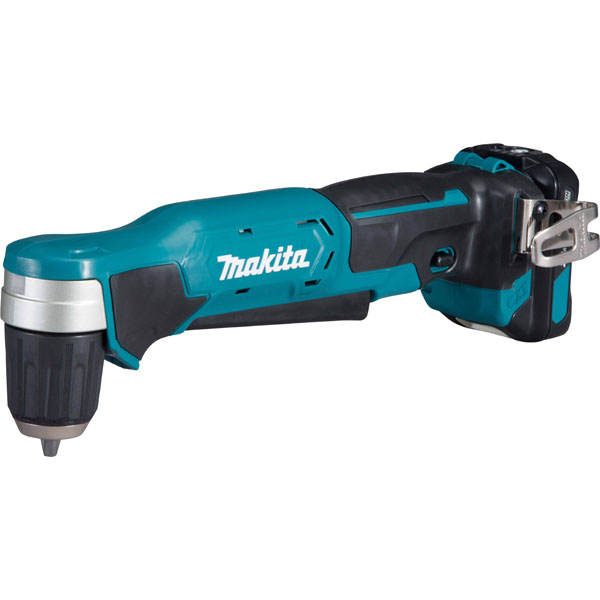

Makita DA333DWAE 12V Max CXT Angle Drill with 2x 2.0Ah Batteries and Standard Charger
The Makita DA333DWAE is a compact cordless angle drill, ideal for drilling and screwdriving in tight or awkward spaces such as between joists, inside cabinets, or behind panels. Powered by the 12V Max CXT lithium-ion platform, this model comes as a complete kit with 2x 2.0Ah batteries, a standard charger, and a handy carry case.
With a maximum drilling capacity of 10mm in steel and 12mm in wood, the DA333DWAE offers more than enough power for general installation and maintenance tasks. The angled head design, variable speed trigger, and built-in LED work light make it a practical and user-friendly solution for confined working areas.
✅ Key Benefits:
Complete kit – includes 2x 2.0Ah batteries, charger, and case
12V Max CXT platform – compact power with cordless freedom
0–1,100rpm variable speed – ideal for both drilling and screwdriving
10mm keyless chuck – quick and easy bit changes
Slim, angled head design – perfect for accessing tight spaces
LED work light – enhances visibility in dark or enclosed areas
Ergonomic soft grip handle – for comfort during prolonged use
Compatible with all Makita 12V Max CXT batteries
📦 Kit Contents:
1x Makita DA333D 12V Max CXT Angle Drill (Body)
2x BL1021B 2.0Ah 12V Max CXT Lithium-Ion Batteries
1x DC10WD Standard CXT Charger
1x Carry Case
1x Instruction Manual
⚠️ Please Note:
Designed for light to medium-duty drilling in wood, metal, and plastic. Always select appropriate drill bits for the material.
| Brand | Makita |
|---|---|
| No load speed | 0 - 1100 min⁻¹ |
| Voltage | 12V |
| Product Dimensions (L x W x H): | 313 x 68 x 95 mm |
| Product net weight | 0.99 kg |
| Sound Pressure Level (LpA) | 70 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Battery System | CXT |
| CXT Battery included | Yes (1x 2.0 Ah) |
| Charger Included | Yes |
| Tool weight with battery | 1.2 - 1.4 kg |
| Nominal Battery Voltage | 12 V |
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) | Li-ion |
| Voltage CXT | Yes |
| Max. Drilling Diameter in Wood | 12 mm |
| Max. Drilling Diameter in Steel | 10 mm |
| Drill Chuck Capacity | 0.8 - 10 mm |
| Vibration Level. Drilling into metal | 3.0 m/s² |
| Vibration Uncertainty (K Factor). Drilling into metal | 1.5 m/s² |
| Drilling Capacity Wood (Self-feed bit) | 24 mm |
| Angle length | 84 mm |
