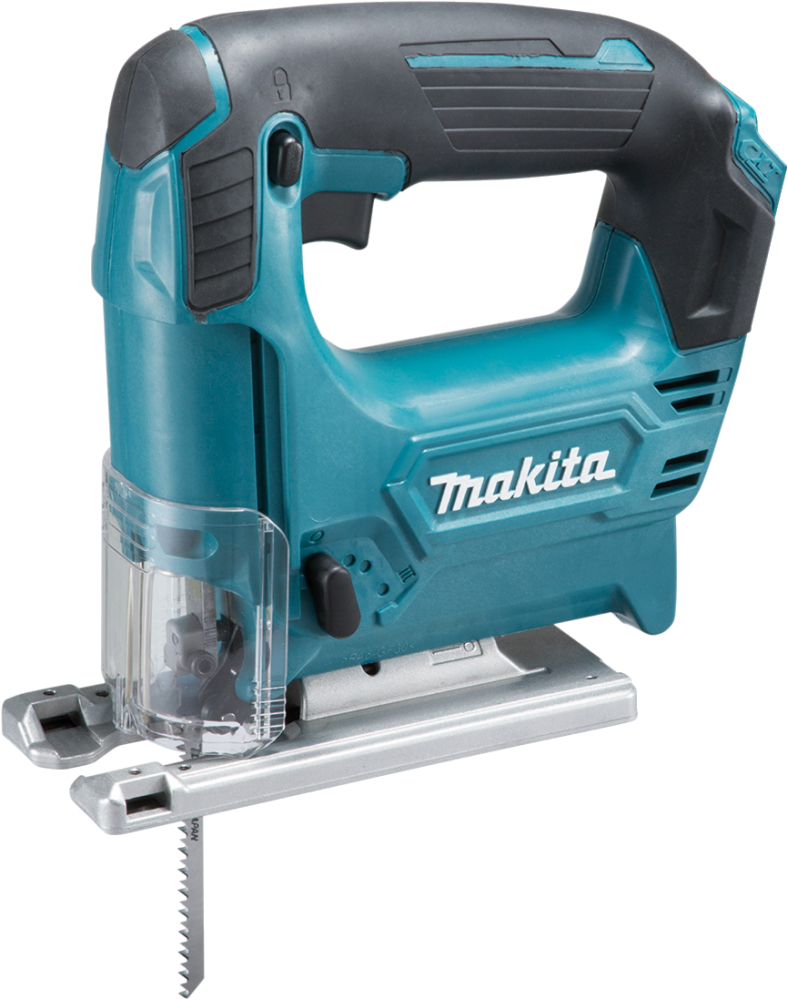

Makita JV101DZ 12V Max CXT Jigsaw – Body Only
The Makita JV101DZ is a lightweight and compact cordless jigsaw, ideal for precision cutting in wood, plastic, and light metal. Designed for comfort and control, it features variable speed, tool-less blade change, and 3 orbital settings + straight cutting, making it a versatile tool for joinery, cabinetry, and general installation work.
As part of the Makita 12V Max CXT platform, this model offers cordless convenience without compromising on cut quality. Its compact body and dust blower function make it particularly suitable for working in confined or awkward spaces.
✅ Key Benefits:
Body only – battery and charger sold separately
Variable speed trigger (0–2,900spm) – for controlled cutting
3 orbital settings + straight mode – balance speed and finish
Tool-less blade change – fast blade swaps without tools
Bevel cuts to 45° left/right – suitable for angled work
Dust blower function – clears cutting line for accuracy
Ergonomic, compact design – ideal for overhead or tight areas
Compatible with all Makita 12V Max CXT batteries
⚠️ Please Note:
This is a body-only model. Battery and charger are not included. Use with compatible jigsaw blades and appropriate PPE for each material.
| Brand | Makita |
|---|---|
| Voltage | 12V |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 232 x 76 x 196 mm |
| Sound Power Level (LWA) | 91 dB(A) |
| Sound Pressure Level (LpA) | 80 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Strokes per Minute (SPM) | 0 - 2900 min⁻¹ |
| Vacuum cleaner connection Ø in / out | 25/- mm |
| Battery System | CXT |
| Tool weight with battery | 1.8 - 1.9 kg |
| Nominal Battery Voltage | 12 V |
| Body Only | Yes |
| Body Only Machine | Yes |
| Voltage CXT | Yes |
| Max Output Power | 200 W |
| Max. Bevel Range (Left) | 45 º |
| Vibration Level. Cutting Sheet Metal | 5.5 m/s² |
| Length of Stroke | 18 mm |
| Max. Cutting Capacity in Wood (90°) | 65 mm |
| Vibration Level. Cutting Boards | 7.0 m/s² |
| Max. Cutting Capacity in Steel (90°) | 2 mm |
| Capacity Aluminium | 4 mm |
| Orbital Action | Yes |
| Cutting capacity wooden planks | 60 mm |
