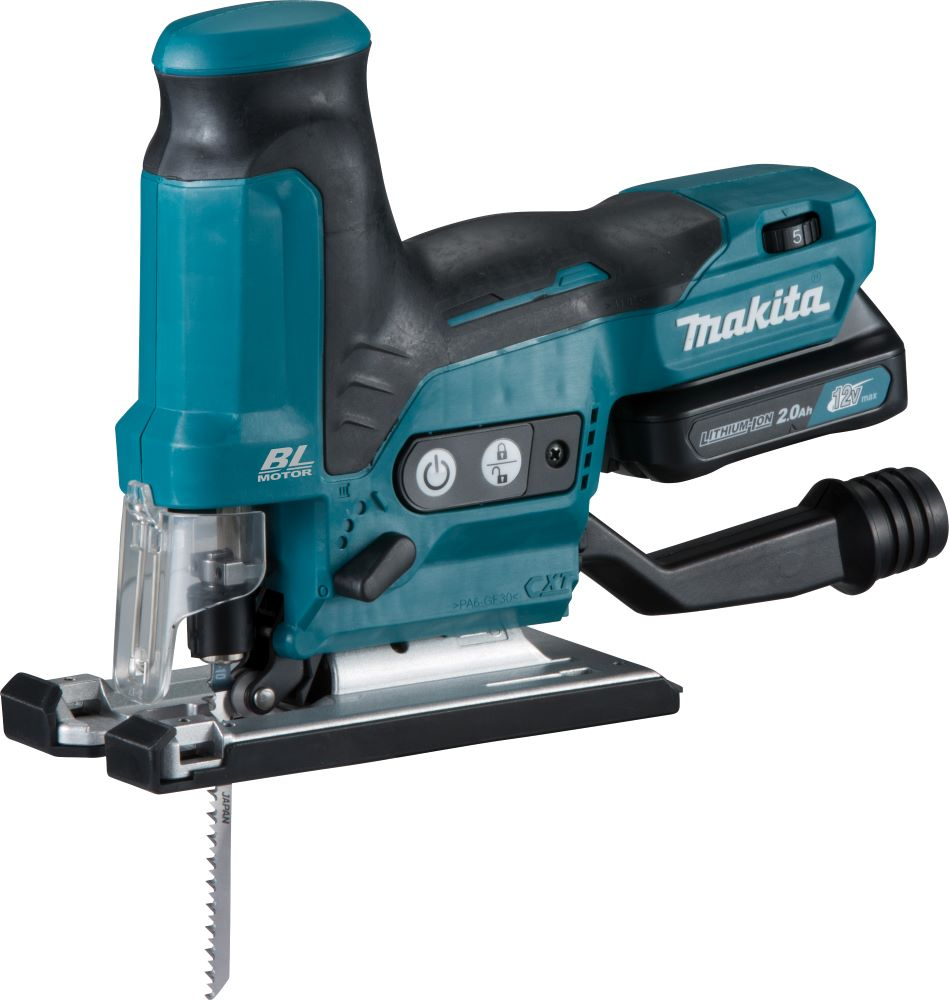

Makita JV102DSAJ 12V Max CXT Brushless Barrel Grip Jigsaw with 2x 2.0Ah Batteries, Fast Charger & Makpac Case
The Makita JV102DSAJ is a premium 12V Max CXT jigsaw featuring a compact barrel grip design and brushless motor, offering precise, low-vibration cutting in wood, metal, plastics, and more. Supplied as a full kit with 2x 2.0Ah batteries, a fast charger, and a Makpac carry case, this is a professional-grade cordless solution for fitters, joiners, and finishing specialists.
The brushless motor improves efficiency and runtime, while the tool-less blade change, orbital action, and variable speed dial provide control and adaptability for every job. The barrel grip style offers a low-profile, ergonomic hold — ideal for scroll work and overhead cutting where precision matters.
✅ Key Benefits:
Complete kit – includes 2x 2.0Ah batteries, fast charger & Makpac case
Brushless motor – for extended runtime, precision, and tool life
Barrel grip design – ideal for close-control and curved cutting
Tool-less blade change – quick and convenient
3 orbital settings + straight cutting – for speed or smoothness
Bevel cutting up to 45° – for angled work
Variable speed dial + trigger (800–3,000spm) – matched to material
LED work light – enhances visibility during delicate cuts
Dust blowing function – keeps cut line clear
Compatible with all Makita 12V Max CXT batteries
📦 Kit Contents:
1x Makita JV102D 12V Max CXT Brushless Jigsaw (Body)
2x BL1021B 2.0Ah 12V Max CXT Lithium-Ion Batteries
1x DC10SB Fast CXT Charger
1x Makpac Type 1 Case + Inner Tray
1x Jigsaw Blade
1x Instruction Manual
⚠️ Please Note:
Always use blades appropriate to the material. Wear proper PPE during operation.
| Brand | Makita |
|---|---|
| Brushless Motor | Yes |
| Voltage | 12V |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 237 x 76 x 186 mm |
| Sound Power Level (LWA) | 96 dB(A) |
| Sound Pressure Level (LpA) | 85 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Strokes per Minute (SPM) | 800 - 3000 min⁻¹ |
| Vacuum cleaner connection Ø in / out | 23/28 mm |
| Battery System | CXT |
| Charger Included | Yes |
| Tool weight with battery | 1.8 - 1.9 kg |
| Nominal Battery Voltage | 12 V |
| Voltage CXT | Yes |
| Max Output Power | 280 W |
| Max. Bevel Range (Left) | 45 º |
| Battery included | Yes (2x 2.0 Ah) |
| Vibration Level. Cutting Sheet Metal | 9.5 m/s² |
| Length of Stroke | 23 mm |
| Max. Cutting Capacity in Wood (90°) | 65 mm |
| Vibration Level. Cutting Boards | 11.5 m/s² |
| Max. Cutting Capacity in Steel (90°) | 10 mm |
| Capacity Aluminium | 20 mm |
| Orbital Action | Yes |
