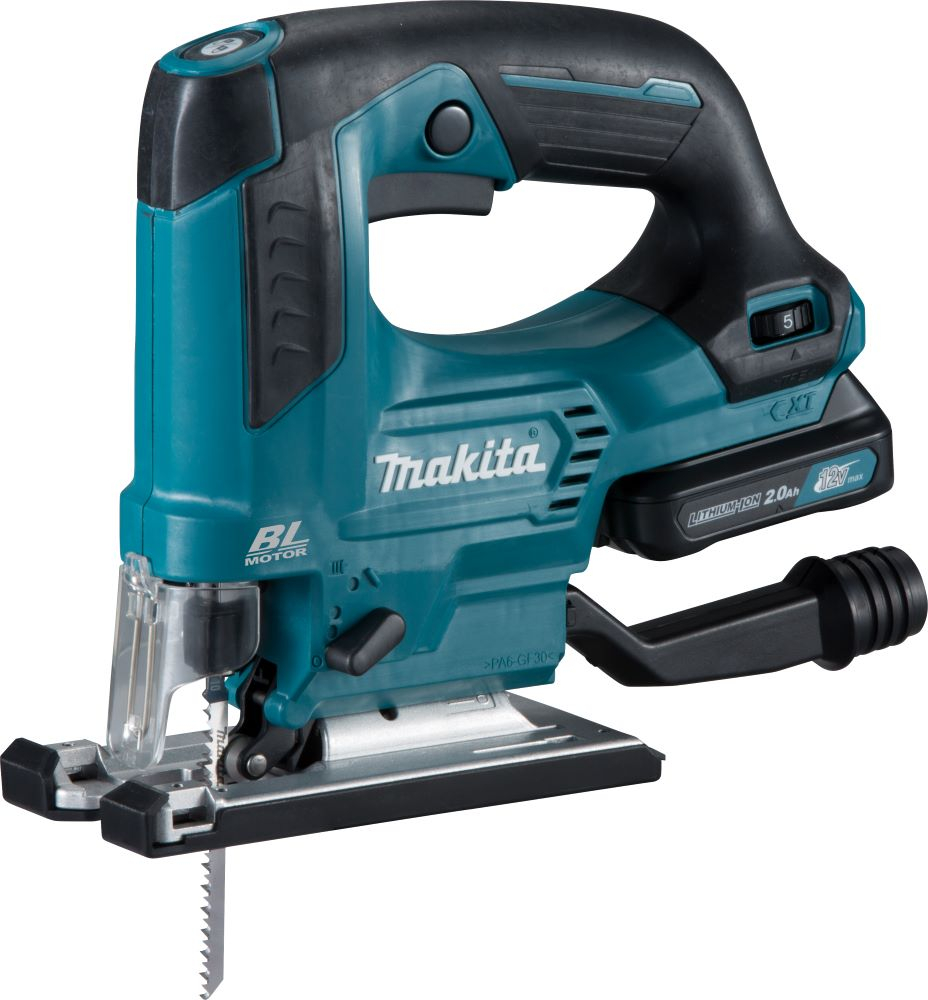

Makita JV103DSAJ 12V Max CXT Brushless Top Handle Jigsaw with 2x 2.0Ah Batteries, Fast Charger & Makpac Case
The Makita JV103DSAJ is a compact, top handle jigsaw powered by a high-performance brushless motor, perfect for fast, accurate cuts in wood, plastic, metal, and laminates. Supplied as a complete kit with 2x 2.0Ah batteries, fast charger, and Makpac carry case, this cordless jigsaw is ideal for professionals who need mobility, control, and clean results on the job.
Its top handle design offers excellent grip and visibility, while the tool-less blade change, orbital action, and variable speed dial make it suitable for both rough and fine cuts. The brushless motor delivers longer runtime, reduced heat, and extended tool life — even under demanding use.
✅ Key Benefits:
Complete kit – includes 2x 2.0Ah batteries, fast charger & Makpac case
Brushless motor – improves performance and extends battery life
Top handle design – ergonomic control for precision cutting
Tool-less blade clamp – quick and simple blade changes
3 orbital settings + straight cut – adjust for speed or finish quality
Bevel cuts up to 45° – for angled applications
Variable speed (800–3,000spm) – matched to material and cut type
LED job light + dust blower – keeps cutting line clear
Compatible with all Makita 12V Max CXT batteries
📦 Kit Contents:
1x Makita JV103D 12V Max CXT Brushless Jigsaw (Body)
2x BL1021B 2.0Ah 12V Max CXT Lithium-Ion Batteries
1x DC10SB Fast CXT Charger
1x Makpac Type 1 Carry Case
1x Makpac Inner Tray
1x Jigsaw Blade
1x Instruction Manual
⚠️ Please Note:
Use correct blades for each material. Always wear appropriate PPE during operation.
| Brand | Makita |
|---|---|
| Brushless Motor | Yes |
| Voltage | 12V |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 237 x 76 x 206 mm |
| Sound Power Level (LWA) | 96 dB(A) |
| Sound Pressure Level (LpA) | 85 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Strokes per Minute (SPM) | 800 - 3000 min⁻¹ |
| Vacuum cleaner connection Ø in / out | 23/28 mm |
| Battery System | CXT |
| Charger Included | Yes |
| Tool weight with battery | 1.9 - 2.0 kg |
| Nominal Battery Voltage | 12 V |
| Voltage CXT | Yes |
| Max Output Power | 280 W |
| Max. Bevel Range (Left) | 45 º |
| Battery included | Yes (2x 2.0 Ah) |
| Vibration Level. Cutting Sheet Metal | 6.0 m/s² |
| Length of Stroke | 23 mm |
| Max. Cutting Capacity in Wood (90°) | 90 mm |
| Vibration Level. Cutting Boards | 8.5 m/s² |
| Max. Cutting Capacity in Steel (90°) | 10 mm |
| Capacity Aluminium | 20 mm |
| Orbital Action | Yes |
