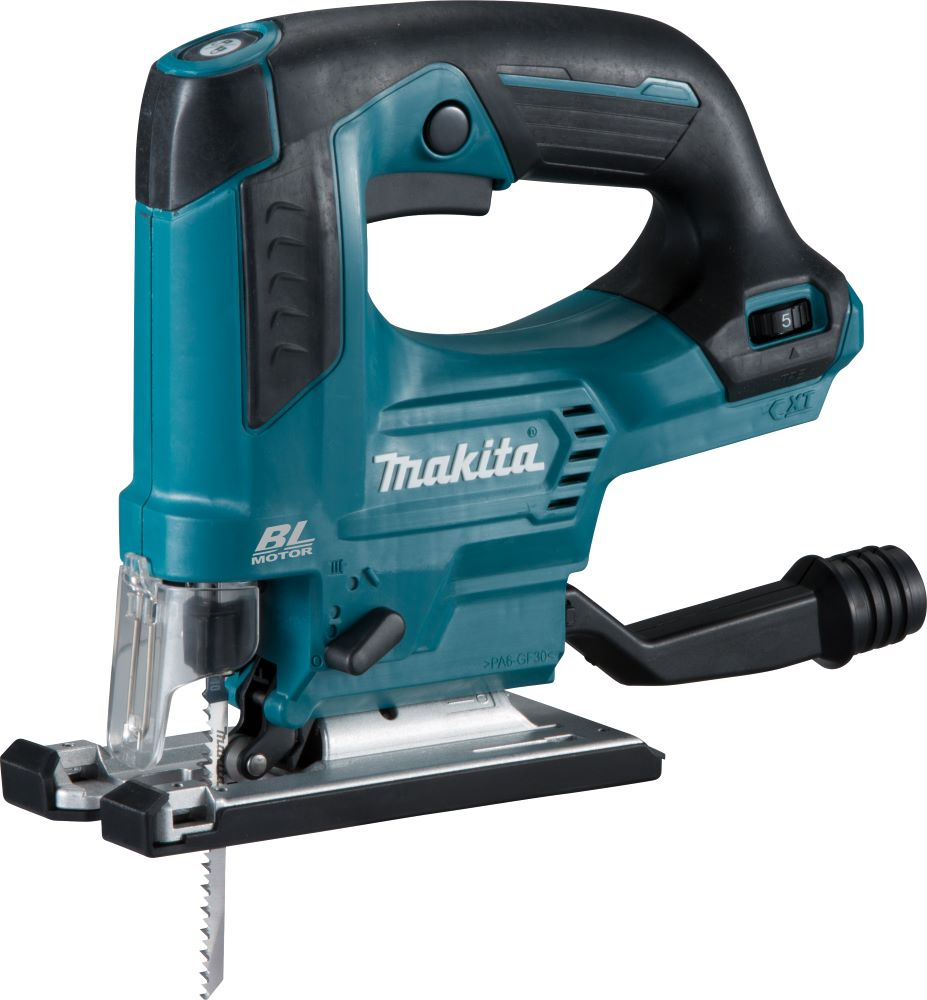

Makita JV103DZ 12V Max CXT Brushless Top Handle Jigsaw – Body Only
The Makita JV103DZ is a compact and efficient brushless jigsaw, designed for precision cutting in wood, plastic, metal, and more. Featuring a top handle design for maximum control and comfort, this cordless tool is ideal for intricate cuts, scroll work, and general-purpose applications.
The brushless motor delivers excellent runtime and durability, while the tool-less blade change, orbital settings, and bevel adjustment make this jigsaw a versatile choice for site or workshop use. As part of the Makita 12V Max CXT platform, it’s compatible with all CXT slide-type batteries.
✅ Key Benefits:
Body only – battery and charger sold separately
Brushless motor – improved runtime, efficiency, and motor life
Top handle design – ergonomic grip and visibility for precision cuts
Tool-less blade clamp – quick, easy blade changes
3 orbital settings + straight cut – adaptable to different materials
Bevel cuts up to 45° – for mitre or angled applications
Variable speed control (800–3,000spm) – tailored to material type
LED job light & dust blower – clear view of the cut line
Compatible with all Makita 12V Max CXT batteries
⚠️ Please Note:
This is a body-only model. Battery and charger are not included. Always use suitable blades for your application and wear correct PPE.
| Brand | Makita |
|---|---|
| Brushless Motor | Yes |
| Voltage | 12V |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 237 x 76 x 206 mm |
| Sound Power Level (LWA) | 96 dB(A) |
| Sound Pressure Level (LpA) | 85 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Strokes per Minute (SPM) | 800 - 3000 min⁻¹ |
| Vacuum cleaner connection Ø in / out | 23/28 mm |
| Battery System | CXT |
| Tool weight with battery | 1.9 - 2.0 kg |
| Nominal Battery Voltage | 12 V |
| Body Only | Yes |
| Body Only Machine | Yes |
| Voltage CXT | Yes |
| Max Output Power | 280 W |
| Max. Bevel Range (Left) | 45 º |
| Vibration Level. Cutting Sheet Metal | 6.0 m/s² |
| Length of Stroke | 23 mm |
| Max. Cutting Capacity in Wood (90°) | 90 mm |
| Vibration Level. Cutting Boards | 8.5 m/s² |
| Max. Cutting Capacity in Steel (90°) | 10 mm |
| Capacity Aluminium | 20 mm |
| Orbital Action | Yes |
