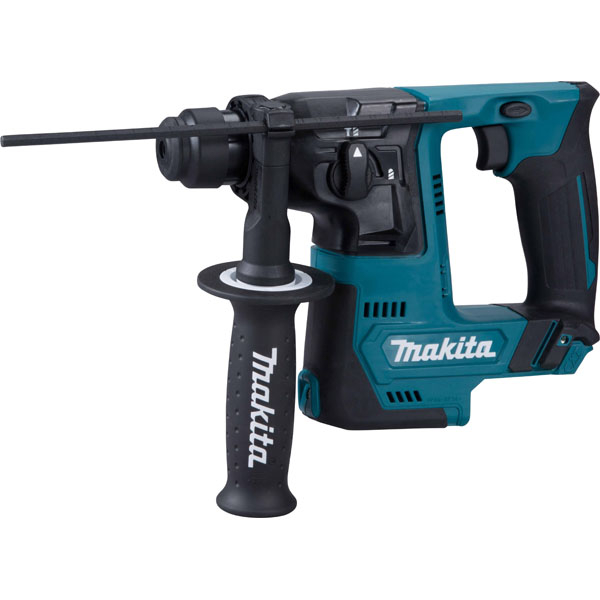

Makita HR140DZ 12V Max CXT Rotary Hammer Drill (Body Only)
The Makita HR140DZ is a compact 12V Max SDS-Plus rotary hammer, ideal for light-duty masonry drilling and general rotary drilling in wood and metal. Designed for tradespeople who need cordless mobility without compromising on precision, it’s part of the Makita 12V Max CXT platform — offering excellent performance in a lightweight, ergonomic package.
With 2-mode operation (rotation only and rotary hammer), a brushless motor, and a 14mm capacity in concrete, the HR140DZ is perfect for overhead work, confined spaces, and small-scale anchoring tasks. Its SDS-Plus chuck ensures compatibility with a wide range of accessories.
✅ Key Benefits:
Body only – battery and charger sold separately
2-mode operation – rotary hammer and rotation-only for drilling versatility
Brushless motor – increases efficiency and extends tool life
SDS-Plus tool holder – accepts standard SDS-Plus accessories
Max capacities: 14mm concrete / 13mm wood / 10mm steel
Electric brake & variable speed trigger – for enhanced user control
LED job light – improves visibility in dark or enclosed spaces
Compact & lightweight – only 2.3kg with battery
Compatible with all Makita 12V Max CXT batteries
⚠️ Please Note:
This is a body-only tool. Battery and charger are not included. Use only with SDS-Plus compatible bits. Designed for light-duty masonry and general drilling.
| Brand | Makita |
|---|---|
| No load speed | 0 - 850 min⁻¹ |
| Voltage | 12V |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 246 x 74 x 179 mm |
| Sound Power Level (LWA) | 95 dB(A) |
| Sound Pressure Level (LpA) | 84 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Battery System | CXT |
| Tool weight with battery | 1.9 - 2.6 kg |
| Nominal Battery Voltage | 12 V |
| Body Only | Yes |
| Body Only Machine | Yes |
| Electronic brake | Yes |
| Voltage CXT | Yes |
| Max. Drilling Diameter in Wood | 13 mm |
| Max. Drilling Diameter in Steel | 10 mm |
| Impact Energy | 1.0 J |
| Impacts per Minute (IPM) | 0 - 4900 min⁻¹ |
| Adapted for SDS-PLUS bits | Yes |
| Max. Drilling Diameter in Concrete | 14 mm |
| Optimum Drilling Diameter Range in Concrete | 5 - 8 mm |
| Vibration Level. Hammer Drilling Into Concrete | 7.0 m/s² |
