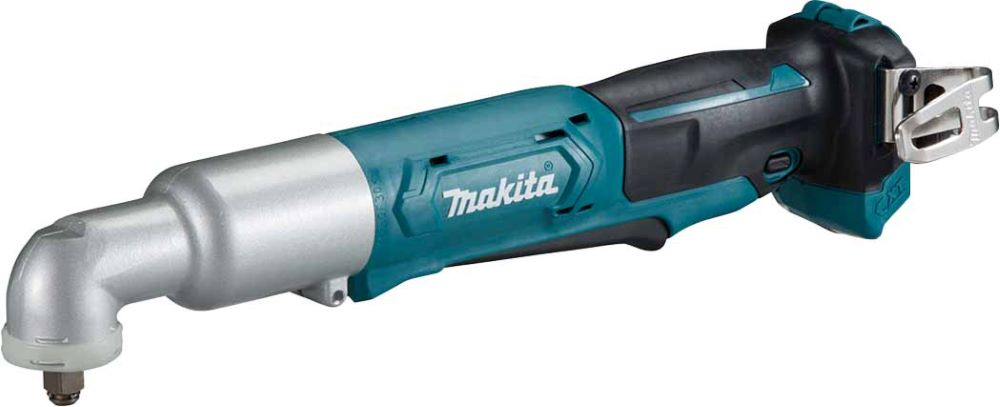

Makita TL065DZ 12V Max CXT Angle Impact Wrench – Body Only
The Makita TL065DZ is a compact 12V Max CXT angle impact wrench, engineered for access in confined or awkward spaces where a standard impact wrench won’t fit. Delivering up to 110Nm of torque, it’s ideal for light-duty automotive, maintenance, and assembly work — especially where reach and clearance are limited.
The 90° head design allows fasteners to be driven or removed in tight areas, while the 3/8" square drive, variable speed trigger, and built-in LED light provide control, versatility, and accuracy. It’s lightweight, easy to handle, and part of the Makita CXT 12V Max system.
✅ Key Benefits:
Body only – battery and charger sold separately
Compact 90° head design – perfect for tight and hard-to-reach areas
110Nm max torque – ideal for light-duty fastening and loosening
3/8" square drive – compatible with a wide range of sockets
Variable speed (0–2,000rpm) – precise torque application
Up to 3,000 impacts per minute – efficient fastening action
LED work light – improves visibility in dark or confined areas
Reversible operation – for tightening and loosening
Ergonomic grip – comfortable for all-day use
Compatible with all Makita 12V Max CXT batteries
⚠️ Please Note:
This is a body-only model. Battery and charger are not included. Always use impact-rated sockets and appropriate PPE when operating.
| Brand | Makita |
|---|---|
| No load speed | 0 - 2000 min⁻¹ |
| Voltage | 12V |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 361 x 66 x 86 mm |
| Sound Power Level (LWA) | 101 dB(A) |
| Sound Pressure Level (LpA) | 90 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Battery System | CXT |
| Tool weight with battery | 1.2 - 1.6 kg |
| Nominal Battery Voltage | 12 V |
| Body Only | Yes |
| Body Only Machine | Yes |
| Voltage CXT | Yes |
| Angle length | 53 mm |
| Impacts per Minute (IPM) | 0 - 3000 min⁻¹ |
| Max Fastening Torque Impact Drill | 60 Nm |
| Tightening Capacity Standard Bolt | M4 - M12 |
| Vibration Level. Impact Tightening of Fasteners of the Maximum Capacity of the Tool | 18.0 m/s² |
| Drive Square | 3/8 " |
