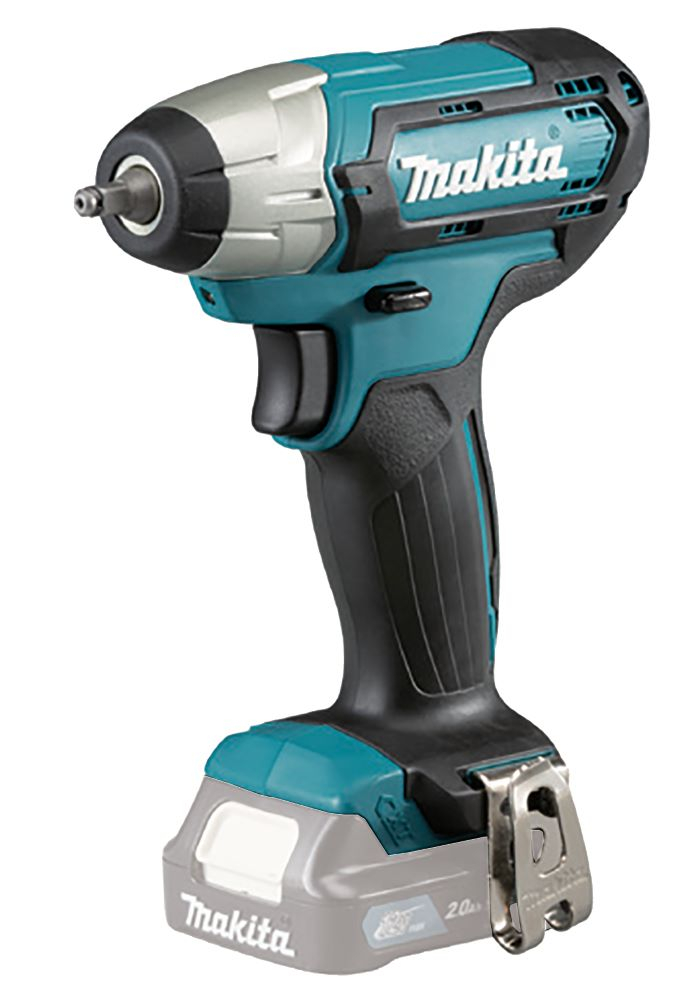

Makita TW060DZ 12V Max CXT ¼" Impact Wrench – Body Only
The Makita TW060DZ is a compact and efficient 12V Max CXT impact wrench, designed for light-duty fastening and loosening in automotive, maintenance, and assembly applications. With a ¼" square drive and up to 60Nm of torque, it offers excellent performance in tight or awkward spaces.
Part of the Makita 12V Max CXT platform, this lightweight tool features a variable speed trigger, reverse function, and LED job light for enhanced control and visibility. It’s the perfect choice when space is limited but power is still required.
✅ Key Benefits:
Body only – battery and charger sold separately
¼" square drive – for small sockets and accurate fastening
60Nm max torque – ideal for light mechanical tasks
Variable speed (0–2,600rpm) – better control in varied materials
Impact rate up to 3,200ipm – efficient, high-speed fastening
Reversible operation – tighten or loosen as needed
LED work light – improves visibility in dark areas
Compact and ergonomic design – fits easily into tight spaces
Compatible with all Makita 12V Max CXT batteries
⚠️ Please Note:
This is a body-only model. Battery and charger are not included. Always use impact-rated sockets and wear PPE during operation.
| Brand | Makita |
|---|---|
| No load speed | 0 - 2600 min⁻¹ |
| Voltage | 12V |
| Product Dimensions (L x W x H): | 161 x 66 x 205 mm |
| Product net weight | 0.82 kg |
| Sound Power Level (LWA) | 101 dB(A) |
| Sound Pressure Level (LpA) | 90 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Battery System | CXT |
| Tool weight with battery | 1.0 - 1.2 kg |
| Nominal Battery Voltage | 12 V |
| Body Only | Yes |
| Body Only Machine | Yes |
| Voltage CXT | Yes |
| Max Output Power | 125 W |
| Impacts per Minute (IPM) | 0 - 3200 min⁻¹ |
| Max Fastening Torque Impact Drill | 60 Nm |
| Tightening Capacity Standard Bolt | M8 - M12 |
| Vibration Level. Impact Tightening of Fasteners of the Maximum Capacity of the Tool | 9.0 m/s² |
| Drive Square | 1/4 " |
| Vibration Uncertainty (K Factor). Impact Tightening of Fasteners of the Maximum Capacity of the Tool | 1.5 m/s² |
