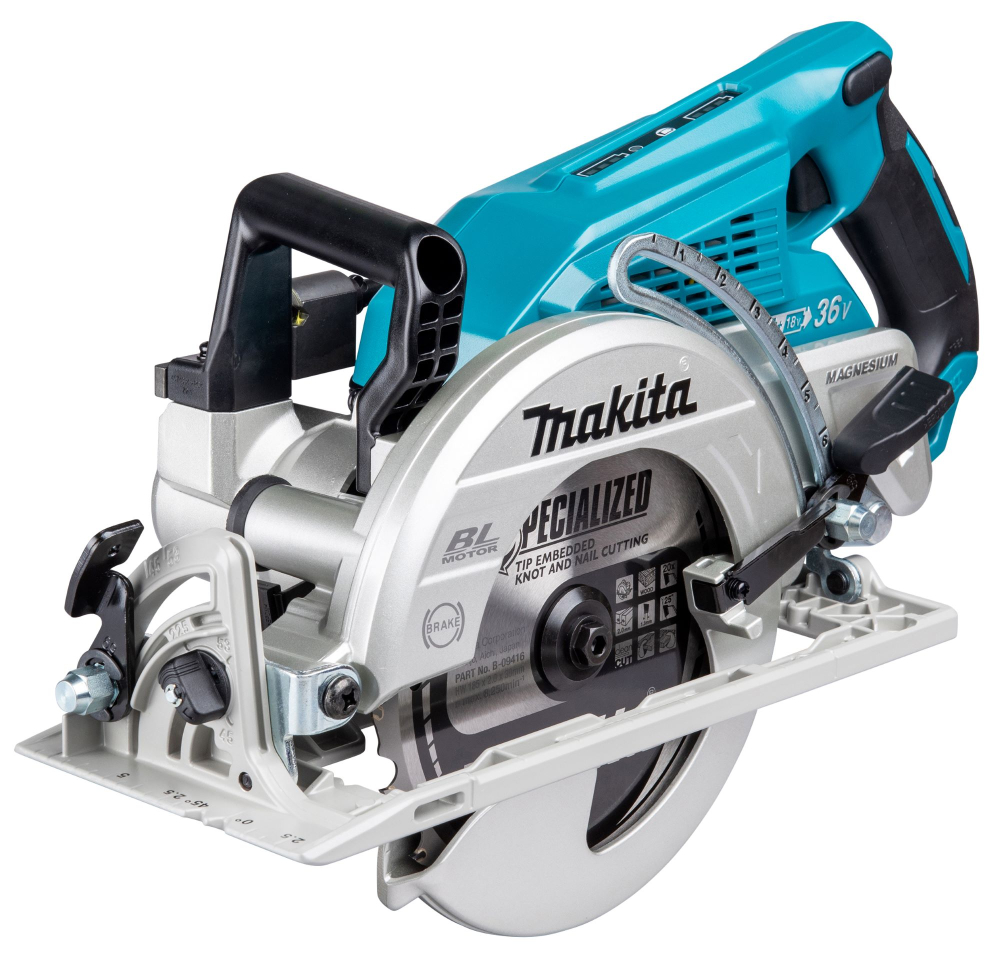

Makita DRS780Z 18Vx2 LXT Brushless Rear Handle Circular Saw – 185mm Cordless Power with Superior Control
The Makita DRS780Z is a rear-handle 185mm cordless circular saw powered by two 18V LXT batteries to deliver 36V brushless performance. Designed for framing, roofing, and large timber cutting, it features a direct drive brushless motor, Automatic Torque Drive Technology (ADT), and a left-side blade design for better visibility and control during long, straight cuts.
✅ Key Benefits:
185mm blade diameter – delivers a maximum cutting depth of 65mm at 90°, 45mm at 45°, and 38mm at 53°
Rear handle design – offers improved balance and control for ripping and framing applications
Powered by 2x 18V LXT batteries – delivers true 36V output for corded-like performance
Brushless motor – increases power, extends battery life, and requires less maintenance
Automatic Torque Drive Technology (ADT) – automatically adjusts cutting speed and torque under load
Electric brake & soft start – enhances user safety and comfort
Left-blade positioning – provides better visibility of the cut line for right-handed users
LED job light & blower function – keeps your cutting line visible and clean
Die-cast magnesium base & guards – for lightweight durability on the job site
XPT (eXtreme Protection Technology) – resists water and dust for use in harsh environments
Compatible with all Makita 18V LXT batteries – part of the powerful LXT cordless ecosystem
⚠️ Body only – batteries, charger, and case not included. Requires 2x 18V LXT batteries to operate.
| Brand | Makita |
|---|---|
| Brushless Motor | Yes |
| No load speed | 5100 min⁻¹ |
| Voltage | 18V |
| Product Dimensions (L x W x H): | 446 x 196 x 270 mm |
| Sound Power Level (LWA) | 103 dB(A) |
| Sound Pressure Level (LpA) | 92 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Max. Cutting Depth at 90° | 65 mm |
| Battery System | LXT |
| Bore Size (Arbor Diameter) | 30 mm |
| Max. Cutting Depth at 45° | 45 mm |
| Tool weight with battery | 5.0 - 5.6 kg |
| Nominal Battery Voltage | 2x 18 V |
| Body Only | Yes |
| Body Only Machine | Yes |
| Blade Diameter | 185 mm |
| Voltage LXT | Yes |
| Max Output Power | 1700 W |
| Max. Bevel Range (Left) | 0 / 53 º |
| Vibration Level. Cutting Wood | ≤ 2.5 m/s² |
| Vibration Uncertainty (K Factor). Cutting Wood | 1.5 m/s² |
| Capacity 45° | 45 mm |
