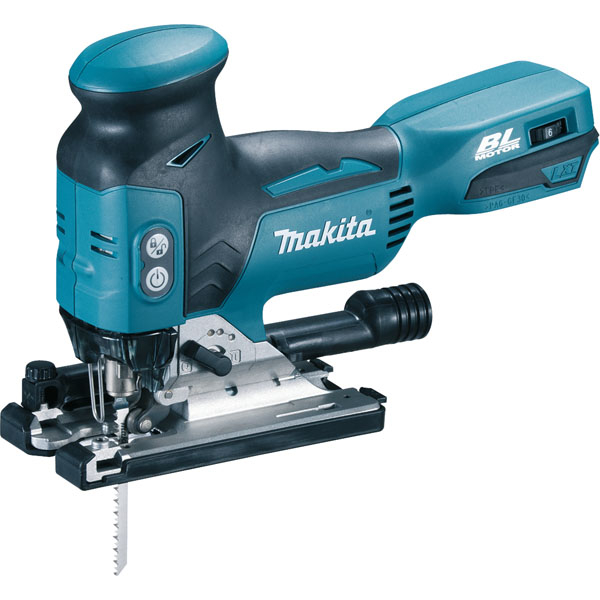

Makita DJV181Z 18V LXT Brushless Jigsaw – Barrel Grip Precision Cutting for Wood, Metal & More
The Makita DJV181Z is a compact and high-performance 18V barrel grip jigsaw designed for maximum control and precision in demanding cutting tasks. Featuring a brushless motor, variable speed trigger, and 3-stage orbital action, this tool is ideal for professional woodworkers, fitters, and fabricators who need smooth, cordless cutting in a variety of materials. Part of Makita’s 18V LXT platform, it delivers extended runtime, less maintenance, and a sleek, low-profile design perfect for intricate or overhead work.
✅ Key Benefits:
Brushless motor – improves cutting power, runtime, and motor life
Barrel grip handle – offers closer hand-to-workpiece control, ideal for precision work
18V LXT battery compatible – cordless freedom using Makita’s reliable platform
Variable speed trigger (800–3,500 spm) – adjust stroke rate for clean cuts in different materials
3 orbital settings + straight cut – switch between fast rough cuts and smooth finishes
Tool-less blade change system – quick and easy T-shank blade swaps
Bevel cut capability up to 45° – adjustable base for angled cuts
26mm stroke length – fast and efficient cutting performance
LED work light – illuminates the cutting line in low-light environments
Dust extraction port – maintains visibility and cleanliness while cutting
Perfect for carpentry, joinery, cabinetry, and finishing trades
⚠️ Body only – battery, charger, and blades not included. Compatible with all Makita 18V LXT batteries.
| Brand | Makita |
|---|---|
| Brushless Motor | Yes |
| Voltage | 18V |
| Product Dimensions (L x W x H): | 298 x 77 x 189 mm |
| Sound Pressure Level (LpA) | 78 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Strokes per Minute (SPM) | 800 - 3500 min⁻¹ |
| Vacuum cleaner connection Ø in / out | 23/28 mm |
| Battery System | LXT |
| Tool weight with battery | 2.3 - 2.6 kg |
| Nominal Battery Voltage | 18 V |
| Body Only | Yes |
| Body Only Machine | Yes |
| Voltage LXT | Yes |
| Max Output Power | 390 W |
| Max. Bevel Range (Left) | 45 º |
| Vibration Level. Cutting Sheet Metal | 5.0 m/s² |
| Vibration Uncertainty (K Factor). Cutting Sheet Metal | 1.5 m/s² |
| Length of Stroke | 26 mm |
| Max. Cutting Capacity in Wood (90°) | 135 mm |
| Vibration Level. Cutting Boards | 6.5 m/s² |
| Vibration Uncertainty (K Factor). Cutting Boards | 1.5 m/s² |
| Max. Cutting Capacity in Steel (90°) | 10 mm |
| Capacity Aluminium | 20 mm |
| Orbital Action | Yes |
