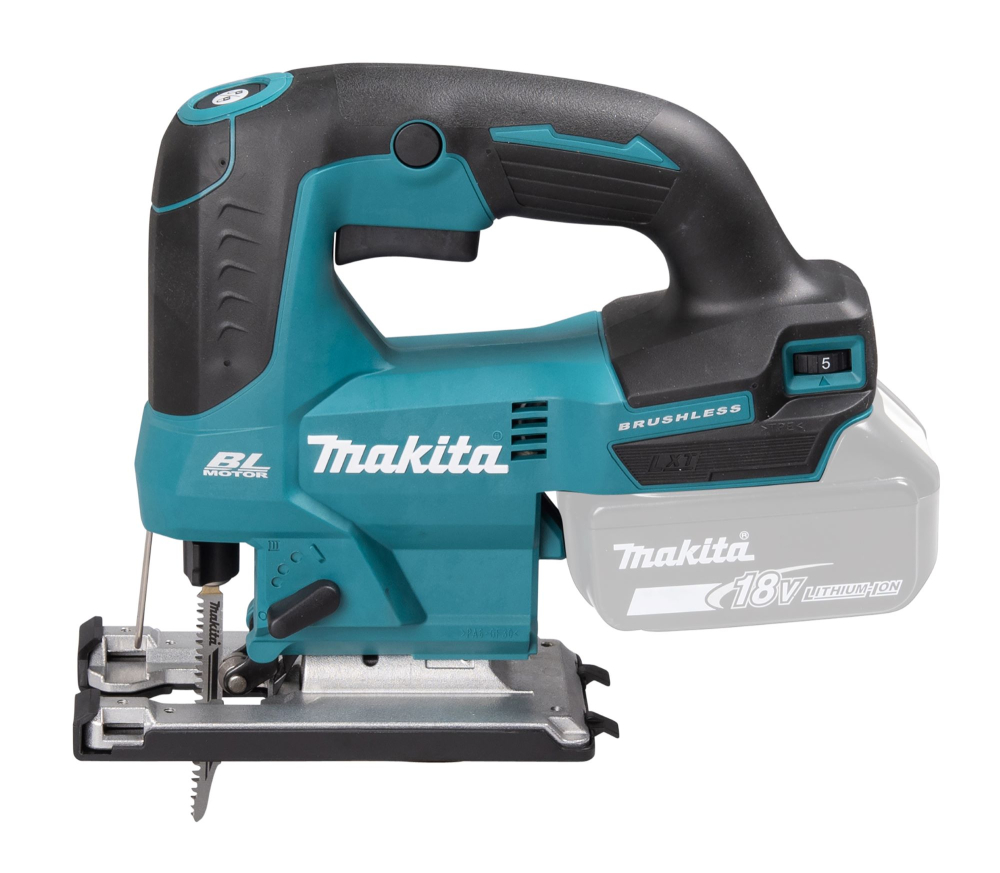

Makita DJV184Z 18V LXT Brushless Jigsaw – Compact Barrel Grip Precision with Cordless Freedom (Body Only)
The Makita DJV184Z is a lightweight and highly maneuverable barrel grip cordless jigsaw, designed for precision cutting in wood, metal, and plastics. Powered by an efficient brushless motor and compatible with Makita’s 18V LXT battery platform, this tool offers excellent control, variable speed performance, and professional-grade durability. Its compact size and low-profile design make it ideal for fine work, tight cuts, and overhead applications—perfect for carpenters, fitters, and finishers who need cordless versatility without compromise.
✅ Key Benefits:
Brushless motor – increases efficiency, runtime, and durability
Barrel grip design – offers better control for intricate cuts and low-profile access
18V LXT platform – compatible with all Makita 18V LXT batteries (sold separately)
Variable speed trigger + dial (800–3,000 spm) – tailor the stroke rate to your material and task
3 orbital settings + straight cut mode – allows aggressive or fine cutting as needed
Tool-less blade change system – quick and easy blade swaps without tools
Bevel cuts up to 45° – for angled cuts in trim, joinery, and cabinetry
LED job light – enhances visibility of the cutting line in low-light work areas
Dust port for extraction – maintains a clear view of the blade and line of cut
Electric brake and soft start – ensures safer, more controlled operation
Perfect for professional joiners, builders, and installation trades
⚠️ Body only – battery, charger, and blades not included. Fully compatible with Makita 18V LXT batteries.
| Brand | Makita |
|---|---|
| Brushless Motor | Yes |
| Voltage | 18V |
| Product Dimensions (L x W x H): | 259 x 77 x 205 mm |
| Sound Power Level (LWA) | 93 dB(A) |
| Sound Pressure Level (LpA) | 82 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Strokes per Minute (SPM) | 0 - 3000 min⁻¹ |
| Vacuum cleaner connection Ø in / out | 23/28 mm |
| Battery System | LXT |
| Tool weight with battery | 2.1 - 2.4 kg |
| Nominal Battery Voltage | 18 V |
| Body Only | Yes |
| Body Only Machine | Yes |
| Voltage LXT | Yes |
| Max Output Power | 400 W |
| Max. Bevel Range (Left) | 45 º |
| Vibration Level. Cutting Sheet Metal | 5.1 m/s² |
| Vibration Uncertainty (K Factor). Cutting Sheet Metal | 1.5 m/s² |
| Length of Stroke | 23 mm |
| Max. Cutting Capacity in Wood (90°) | 135 mm |
| Vibration Level. Cutting Boards | 7.4 m/s² |
| Vibration Uncertainty (K Factor). Cutting Boards | 1.5 m/s² |
| Max. Cutting Capacity in Steel (90°) | 10 mm |
| Capacity Aluminium | 20 mm |
| Orbital Action | Yes |
