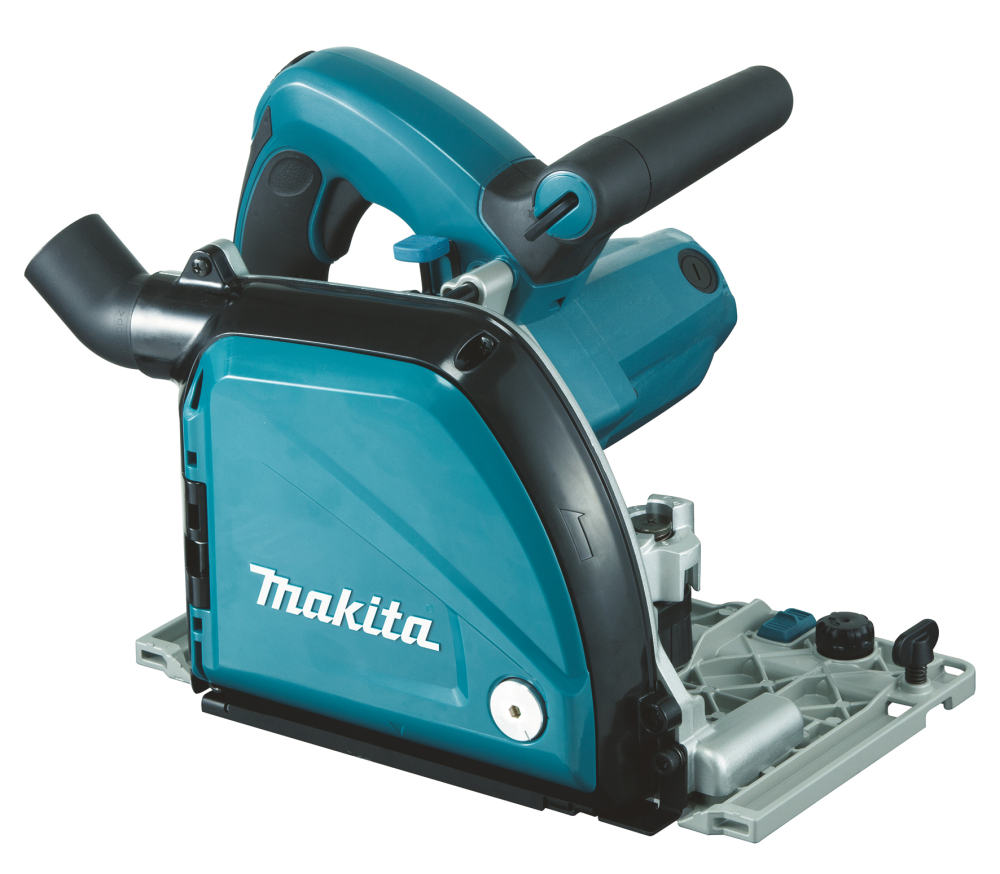

The Makita CA5000XJ is a professional-grade groove milling machine designed for precise cutting and folding of aluminium composite panels (ACM) and similar façade materials. Supplied in a Makpac carry case, this tool is engineered for clean, consistent, and dust-controlled cuts—available in both 110 V (site use) and 240 V (mains power) versions.
1,300 W motor with variable speed control (2,200–6,400 rpm)
Soft-start, constant speed, and overload protection for reliable, safe operation
118 mm TCT V-groove blade delivers precise grooves up to 11 mm deep
Compatible with optional plunge blade (165 mm) when skirt removed
Dust extraction ready with rear-mounted port for clean cutting
Compact, ergonomic body with tool-less blade changes and easy depth adjustment
Compatible with Makita guide rails (sold separately)
Available in both 110 V (CA5000XJ/1) and 240 V (CA5000XJ/2)
1× Makita CA5000XJ Aluminium Groove Cutter (110 V or 240 V)
1× 118 mm 90° V-Groove TCT Blade
1× Depth Guide Skirt Assembly
1× Hex Wrench
1× Carry Case (Makpac Type 4)
Fabricating ACM panels for façades and cladding systems
Creating smooth, consistent fold grooves for folding and edge treatment
Dry site cutting where dust extraction is essential
Workshop or on-site operations with transformer or mains supply
Choose the correct voltage version—110 V for site transformer use, 240 V for mains connection
Supplied with 90° groove blade only—other groove angles (e.g., 135°) available separately
Suitable for dry-use cutting only; not designed for wet applications
| Brand | Makita |
|---|---|
| No load speed | 2200 - 6400 min⁻¹ |
| Voltage | 110V |
| Product Dimensions (L x W x H): | 346 x 250 x 250 mm |
| Sound Power Level (LWA) | 99 dB(A) |
| Sound Pressure Level (LpA) | 88 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Continuous Input Power | 1300 W |
| Power Supply Cord | 2.5 m |
| Weight Without Cable | 5.1 kg |
| Vacuum cleaner connection Ø in / out | 35/40 mm |
| Max. Cutting Depth at 90° | 11 / 36 mm |
| Vibration Level. Aluminum Composite Material Groove Cutting | ≤ 2.5 m/s² |
| Vibration Level. Cutting metal | ≤ 2.5 m/s² |
| Vibration Uncertainty (K Factor). Aluminum Composite Material Groove Cutting | 1.5 m/s² |
| Vibration Uncertainty (K Factor). Cutting metal | 1.5 m/s² |
