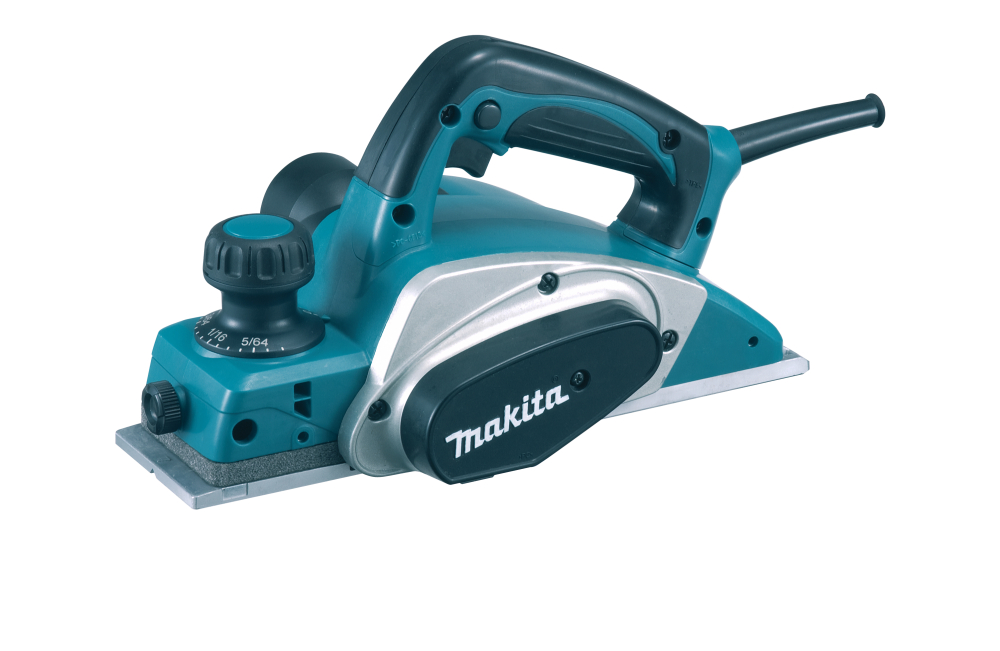

The Makita KP0800 is a powerful and accurate handheld woodworking planer built for both precision trimming and heavy stock removal. Despite its high performance, it remains remarkably light and easy to control. It features micro‑adjustable depth control, a spring-loaded sole, and a fine-profile grip for excellent ergonomics. With an 82 mm wide cutter block and shallow depth cut, it delivers clean planing lines—while still accommodating a maximum rebate (shiplap) depth of 9 mm. Its 6.5 A / 620 W motor spins the cutters at 17,000 rpm for rapid material removal. Available in both 110 V transformer-safe (KP0800/1) and 240 V mains (KP0800/2) versions, this tool suits both site and workshop setups.
620 W motor delivering 17,000 rpm no-load cutter block speed
Planing width: 82 mm, with depth per pass up to 2.5 mm
Maximum rebate (shiplap) depth: 9 mm in single operation
Precision depth adjustment via fine thumb-wheel with tactile clicks
Lightweight body (approx. 2.6 kg/net) and compact dimensions (~285 × 158 × 158 mm)
Spring-loaded stand protects blades and surface during carry or storage
Efficient chip ejection port compatible with vacuum extraction
Double-insulated and built for comfortable use with balanced grip
1× Makita KP0800 Planer (choose KP0800/1 = 110 V or KP0800/2 = 240 V)
1× Blade gauge assembly, socket wrench, and guide rule
Optional kit version (KP0800K) includes carry case and blade set
Site carpentry, window/door trimming, shiplap installation, and frame rebates
Quick and precise removal of stock on studs, door edges, and timber cladding
Users who need portable planing with accurate depth control
Select correct voltage before purchase: KP0800/1 (110 V) or KP0800/2 (240 V)
Always fit the spring-loaded stand before powering on or carrying
Use sharp blades and avoid cutting beyond 2.5 mm per pass for best finish
Standard PPE required: safety glasses, hearing protection, gloves, and dust mask
| Brand | Makita |
|---|---|
| No load speed | 17000 min⁻¹ |
| Voltage | 110V |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 285 x 158 x 158 mm |
| Sound Power Level (LWA) | 96 dB(A) |
| Sound Pressure Level (LpA) | 85 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Continuous Input Power | 650 W |
| Power Supply Cord | 2.5 m |
| Weight Without Cable | 2.6 kg |
| Vacuum cleaner connection Ø in / out | 45/50 mm |
| Planing Width | 82 mm |
| Max. Chip Thickness (Planing Depth) | 2.5 mm |
| Max. Shiplapping Depth | 9 mm |
| Vibration Level. Planing Softwood | 2.5 m/s² |
