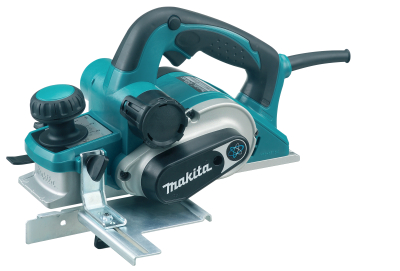

The Makita KP0810CK is a pro-grade planer combining high-output performance with portability and precision. Powered by a 1,050 W motor, it maintains constant speed under load thanks to built‑in electronic control—ideal for heavy-duty site or workshop use. Featuring an 82 mm wide cutter and re-bating capacity up to 25 mm, it allows deep stock removal, with a maximum planing depth of 4 mm per pass and fine thumb-wheel adjustment for smooth control. Compact yet robust (~3.3 kg), it includes a spring-loaded stand, chip ejection on both sides, chamfer-cut grooves at the front base, and integrates a sturdy MakPac carry case for transport and storage. Available in both 110 V transformer-safe (KP0810CK/1) and 240 V mains (KP0810CK/2) versions.
1,050 W motor with constant speed control to preserve torque during heavy cutting
Planing width: 82 mm
Maximum depth per pass: 4 mm
Deep rebate capability: up to 25 mm for shiplapping or framing work
High speed: ≈12,000 rpm for smooth, efficient removal
Precision depth adjustment wheel with 0.1 mm click increments and chamfer marks
Dual-side chip eject allows operation with dust extraction on either side
Spring-loaded foot protects blades during transport or rest
Front base with 3 chamfer grooves (~1.4, 3, 4 mm) for flush orientation
Ergonomic soft-grip handles and balanced layout (~3.3 kg net)
Full MakPac case (Type 3) included for safe storage and portability
Dust extractor connection possible via port (Ø ~50 mm)
1× Makita KP0810CK Planer (select /1 = 110 V or /2 = 240 V)
1× MakPac carry case
1× Blade gauge assembly, socket wrench, guide rule, depth stop
2× TCT blades, large dust bag, and user documentation
Heavy-trade use: rebates, shiplap, edge trimming, and finish stock removal in timber, cladding, and joinery
Contractors needing consistent, deep planing with controlled feed and portability
Users seeking power and smooth control without sacrificing jobsite mobility
Choose the correct voltage variant: KP0810CK/1 (110 V transformer-safe) or KP0810CK/2 (240 V mains)
Use blades sharp and avoid exceeding 4 mm per pass to ensure smooth finish
Store or carry with the spring-loaded plate engaged to protect cutters
Always wear appropriate PPE: eye and ear protection, dust mask, and gloves
| Brand | Makita |
|---|---|
| No load speed | 12000 min⁻¹ |
| Voltage | 240V |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 290 x 168 x 176 mm |
| Plastic Carrying Case | Yes |
| Sound Power Level (LWA) | 96 dB(A) |
| Sound Pressure Level (LpA) | 85 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Continuous Input Power | 1050 W |
| Power Supply Cord | 2.5 m |
| Weight Without Cable | 3.4 kg |
| Vacuum cleaner connection Ø in / out | 45/50 mm |
| Planing Width | 82 mm |
| Max. Chip Thickness (Planing Depth) | 4 mm |
| Max. Shiplapping Depth | 25 mm |
| Vibration Level. Planing Softwood | 3.5 m/s² |
