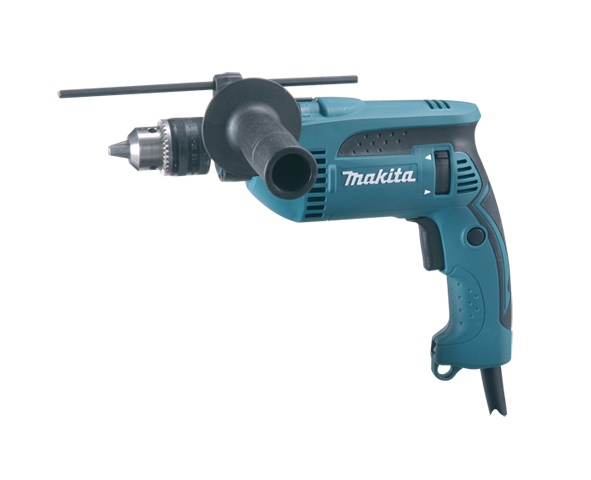

The Makita HP1640 is a heavy-duty corded percussion drill built for demanding drilling tasks in concrete, masonry, metal, and wood. Powered by a 680 W motor, this reliable machine delivers up to 48,000 bpm with variable-speed control and a versatile forward/reverse switch, giving you precision and power in one compact unit.
Featuring a 13 mm keyed chuck for secure bit holding, a robust metal gear housing, and a soft-grip handle, the HP1640 combines durability and comfort. The integrated depth stop enhances accuracy, while the ergonomic design ensures effective, controlled drilling, even under pressure.
Available in 110 V for site-safe power setups or 240 V for standard workshop use.
680 W Motor: Offers up to 3,100 rpm and 48,000 bpm—great for hard-material drilling
16 mm Masonry, 13 mm Steel, and 25 mm Wood capacity
13 mm Keyed Chuck: Provides firm, reliable bit holding
Variable Speed & Reversible Control: Suits a range of drilling and screw-driving tasks
Durable Metal Gear Housing: Built to withstand heavy-duty use
Deep Drill Stop Included: Great for consistent depth hole drilling
Soft-Grip Handle: Improves comfort during prolonged use
Compact and Lightweight: Easy to use overhead and in confined spaces
Dual Voltage: Available in 110 V or 240 V to match your power supply
1x Makita HP1640 Percussion Drill (110 V or 240 V)
1x 13 mm Keyed Chuck (Factory Fitted)
1x Side Handle
1x Depth Stop Rod
Drilling into stone, concrete, brick, and aerated blocks
Metalwork applications including pilot holes in steel
Wood and plastic drilling for general handyman or professional tasks
Site or workshop use with a powerful corded drill
Corded tool only—requires mains or transformer power
Select the correct voltage version (110 V or 240 V) when purchasing
| Brand | Makita |
|---|---|
| No load speed | 0 - 2800 min⁻¹ |
| Voltage | 240V |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 303 x 72 x 222 mm |
| Sound Power Level (LWA) | 103 dB(A) |
| Sound Pressure Level (LpA) | 92 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Continuous Input Power | 680 W |
| Power Supply Cord | 2.0 m |
| Weight Without Cable | 2.0 kg |
| Max. Drilling Diameter in Wood | 30 mm |
| Max. Drilling Diameter in Steel | 13 mm |
| Drill Chuck Capacity | 1.5 - 13 mm |
| Vibration Level. Drilling into metal | 2.5 m/s² |
| Impacts per Minute (IPM) | 0 - 44800 min⁻¹ |
| Max. Drilling Diameter in Masonry | 16 mm |
| Vibration Level. Impact Drilling into Concrete | 17.5 m/s² |
| Max. Drilling Diameter in Concrete | 16 mm |
| Collar Clamping Diameter | 43 mm |
