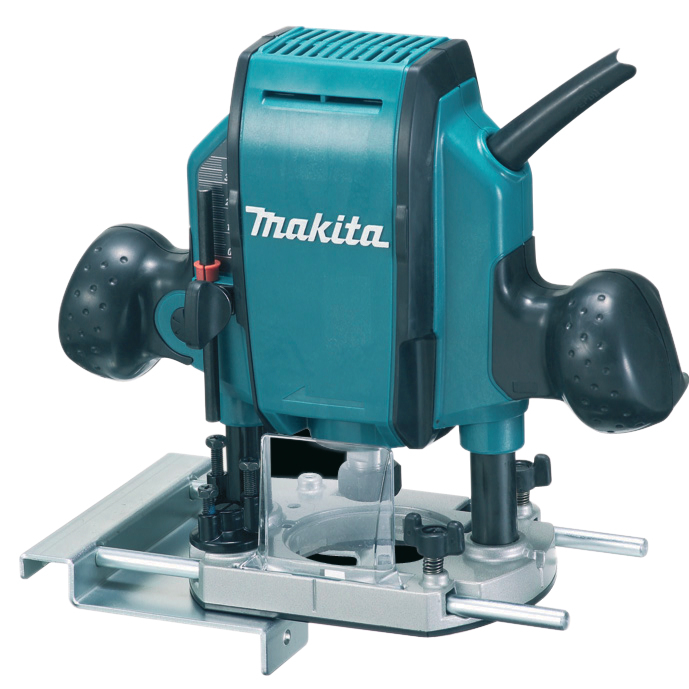

The Makita RP0900X is a high-performance plunge router offering professional-level precision and flexibility. Built for tradespeople and finish carpenters, this compact yet powerful router is equipped with a robust 900 W motor and variable plunge depth with three adjustable stops up to 35 mm. Compatible with both ¼″ and ⅜″ collets, and featuring a scale and revolver depth control, it’s ideal for routing grooves, edge profiling, dovetails, and trim work. Supplied with a carry case and accessories, the RP0900X is available in both 110 V transformer-safe (RP0900X/1) and 240 V mains (RP0900X/2) versions.
900 W motor drives the bit at 27,000 rpm under no-load conditions
Adjustable platform allows plunge depth from 0 to 35 mm, with three depth stops for repeated routing
Accepts both ¼″ and ⅜″ collets in the same base—enhancing versatility
Ergonomic rubberised grip and compact design reduce operator fatigue
Integrated scale and revolver turret for precise depth repetition
Weight: approx. 2.7 kg, cord length approx. 2.5 m
Dust port compatible with Ø32 / Ø37 mm extraction hose
Built-in soft-grip handles and balanced grip layout
Supplied with straight guide, 13 mm & 22 mm wrenches, two collet cones, and carry case
1× Makita RP0900X Plunge Router (select RP0900X/1 for 110 V or RP0900X/2 for 240 V)
1× Plastic carry case
1× Straight guide for edge routing
1× 13 mm and 22 mm wrench
1× Collet cones (¼″ & ⅜″)
Accessories kit or starter router bits depending on variant
Edge profiling, groove routing, rebate cutting, and drilling applications
Trim carpentry, cabinetry, door framing, and finishing tasks
Users needing depth repeatability and the flexibility of dual-collet options
Always select the correct voltage model: RP0900X/1 = 110 V transformer-safe, RP0900X/2 = 240 V mains
Ensure plunge turret locks are correctly engaged to maintain depth accuracy
PPE required: eye and hearing protection, dust extraction, gloves
Use only ¼″ or ⅜″ router bits compatible with the appropriate collet
| Brand | Makita |
|---|---|
| No load speed | 27000 min⁻¹ |
| Voltage | 110V |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 256 x 110 x 217 mm |
| Sound Power Level (LWA) | 100 dB(A) |
| Sound Pressure Level (LpA) | 89 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Continuous Input Power | 900 W |
| Power Supply Cord | 2.5 m |
| Weight Without Cable | 2.7 kg |
| Vacuum cleaner connection Ø in / out | 32/37 mm |
| Plunge capacity | 0 - 35 mm |
| Max. Collet Capacity | 6 / 8 mm |
| Vibration Level. Cutting Grooves in MDF | 4.3 m/s² |
