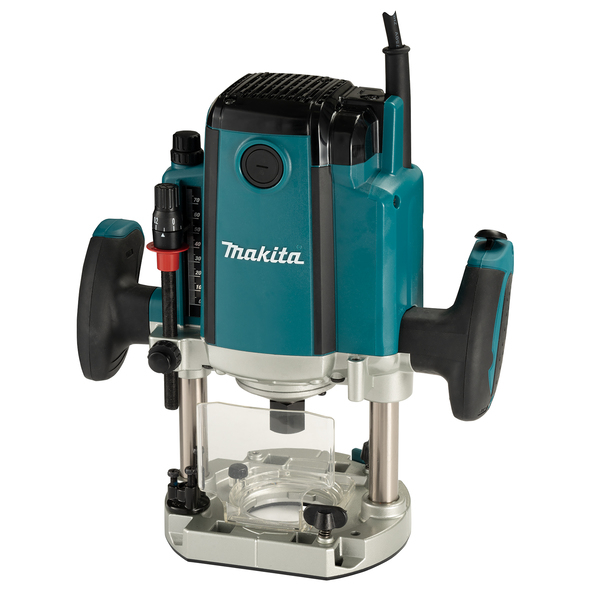

The Makita RP1803 is a high-torque, precision plunge router built for professional use in both site and workshop environments. Featuring a 1,650 W motor, electric brake, soft‑start, and anti‑restart safety, it provides robust performance with controlled operation. With a deep plunge range up to 70 mm, a ½″ (12 mm) collet, and micro‑depth adjustment plus three preset stops, it delivers accuracy when routing grooves, rebates, or finish profiles. Offered in both 110 V transformer-safe (RP1803/1) and 240 V mains (RP1803/2) variants.
Powerful 1,650 W motor, delivering up to 22,000 rpm under no-load
Plunge depth range: 0–70 mm with three adjustable preset stops
Collet size: ½″ (12 mm) for compatibility with standard routing bits
Ergonomic design (~6.2 kg) with soft-grip handles and anti-restart safety
Soft-start and electric brake for smooth activation and control
Handle-mounted trigger, lock-on/off switch and tool-free plunge base
Built-in scale and turret adjustment for precise and repeatable cuts
Dust extraction compatible with Ø32/37 mm hoses for cleaner jobsite use
1× Makita RP1803 Plunge Router (choose RP1803/1 = 110 V or RP1803/2 = 240 V)
1× Plastic carry case
1× Straight guide and template guide adapter
1× Dust nozzle adapter
Wrenches (13 mm and 22 mm) and collet cone
3 preset depth stops
Grooving, rebating, edge profiling, and trim routing in hardwood or MDF
Trades requiring consistent plunge depth with heavy-duty performance
Work on-site or in the workshop with variable-speed routing control
Ensure correct voltage configuration upon purchase: 110 V (RP1803/1) or 240 V (RP1803/2)
Always secure plunge turret before use for accurate depth repeatability
Use appropriate collet and bit diameter; never exceed recommended plunge range
PPE required: eye protection, hearing protection, dust collection, gloves
| Brand | Makita |
|---|---|
| No load speed | 22 000 min⁻¹ |
| Voltage | 240V |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 155 x 294 x 312 mm |
| Sound Power Level (LWA) | 96 dB(A) |
| Sound Pressure Level (LpA) | 85 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Continuous Input Power | 1650 W |
| Power Supply Cord | 4.0 m |
| Weight Without Cable | 6.2 kg |
| Max. Collet Capacity | 12 mm |
| Vibration Level. Cutting Grooves in MDF | 5.1 m/s² |
| Plunge capacity with plunge base | 0 - 70 mm |
