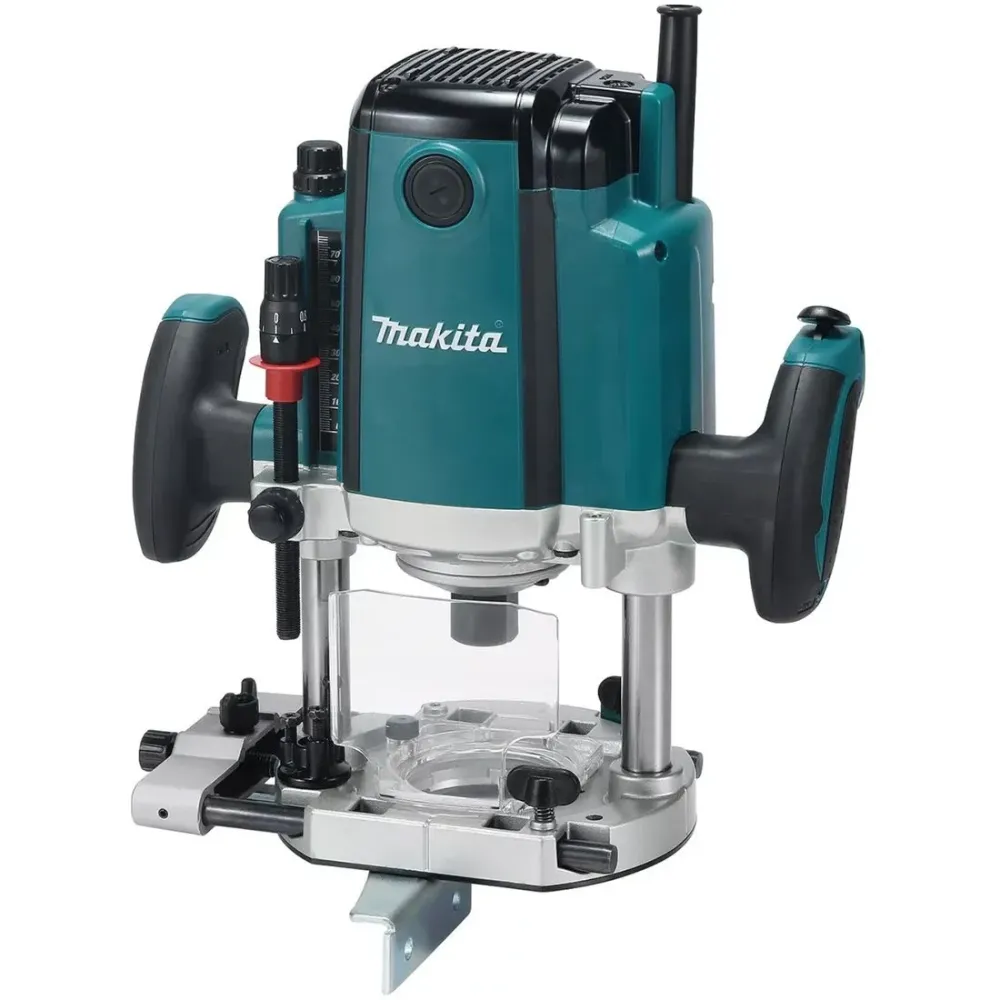

The Makita RP1803X08 is a professional-grade plunge router featuring a robust 1,650 W motor, soft-start, electric brake, and anti-restart control for safe, reliable operation. It delivers up to 22,000 rpm and offers a generous plunge range of 0–70 mm with three preset depth stops and fine micro adjustment for precision routing. Compatible with ½″ (12 mm) collets, this model is ideal for deep grooving, rebating, and edge profiling in both workshop and site settings. Supplied in a Type 4 MakPac carry case, it’s available in both 110 V transformer-safe (RP1803X08/1) and 240 V mains (RP1803X08/2) versions.
1,650 W motor pumping out 22,000 rpm for consistent high performance
Plunge range: 0–70 mm with 3 secure preset stops and micro-adjust fine tuning
½″ (12 mm) collet capacity supports standard heavy-duty router bits
Anti-restart safety, soft-start, and electric brake for controlled performance
Linear‑bearing plunge action ensures smooth movement under load
Built-in depth scale and fine-adjust controls for repeated accuracy
Ergonomic rubberized grips and balanced design (~6.2 kg net)
Operates in both orientations; dust extraction port compatible with Ø 32 / 37 mm hoses
Dual-voltage available: choose RP1803X08/1 = 110 V or RP1803X08/2 = 240 V
1× Makita RP1803X08 Plunge Router
MakPac Type 4 carry case
Straight guide, guide holder, dust nozzle assembly
3 depth-stops and 2 wrenches (13 mm & 22 mm)
Two collet cones (½″ compatible), accessory band and tray
Heavy-duty routing, groove cutting, rebating, and precision profiling
Cabinet, trim, and window-frame finishing with deep plunge needs
Contractors seeking power, dust control, and portability in one tool
Voltage-specific ordering: RP1803X08/1 = 110 V or RP1803X08/2 = 240 V
Must secure plunge turret before use for stable, repeatable depth
Always engage spring-loaded brake before changing bits
PPE required: eye protection, hearing protection, gloves, and dust mask
| Brand | Makita |
|---|---|
| No load speed | 22 000 min⁻¹ |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 155 x 294 x 312 mm |
| Sound Power Level (LWA) | 96 dB(A) |
| Sound Pressure Level (LpA) | 85 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Continuous Input Power | 1650 W |
| Power Supply Cord | 4.0 m |
| Weight Without Cable | 6.2 kg |
| Max. Collet Capacity | 12 mm |
| Vibration Level. Cutting Grooves in MDF | 5.1 m/s² |
| Plunge capacity with plunge base | 0 - 70 mm |
