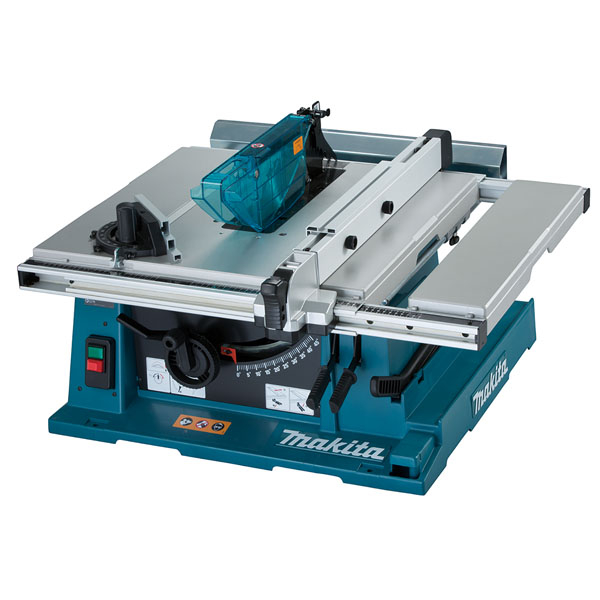

The Makita 2704NX1 is a powerful and accurate professional table saw supplied with a robust wheeled stand. Designed for reliable performance in both workshop and site environments, it features a large cutting capacity, telescopic fence system, and dual voltage options for maximum flexibility.
1,650 W motor with soft-start, electric brake, and anti-restart protection
Blade speed: approx. 4,800–5,200 rpm (depending on voltage)
260 mm TCT blade with 30 mm bore
Cutting depth: 93 mm at 90°, 64 mm at 45°
Bevel range: –0.5° to 50° with positive stops
Telescopic rip fence offers up to 624 mm right-side capacity
Supplied with a heavy-duty wheeled stand for mobility
Table size: approx. 625 × 567 mm
Overall dimensions: approx. 715 × 753 × 483 mm
Weight: approx. 35–37 kg
Dust extraction port compatible with standard vacuum systems
1× Makita 2704NX1 Table Saw
(choose 2704NX1/1 for 110 V or 2704NX1/2 for 240 V)
1× 260 mm TCT saw blade (24T)
Rip fence, miter gauge, push stick, dust nozzle
Wrenches (13 mm, 19 mm, 22 mm), hex key (5 mm)
Makita portable base stand
Timber and sheet material cutting in trade, workshop, or mobile site setups
Professionals needing both portability and power
Applications requiring smooth, accurate rip and bevel cuts
Be sure to select the correct voltage version:
2704NX1/1 = 110 V (site transformer)
2704NX1/2 = 240 V (standard mains)
Use only blades rated for 260 mm and 4,800+ rpm
Always operate with riving knife and blade guard installed
PPE required: goggles, hearing protection, gloves, dust mask
| Brand | Makita |
|---|---|
| No load speed | 5200 min⁻¹ |
| Voltage | 240V |
| Product Dimensions (L x W x H): | 715 x 753 x 483 mm |
| Sound Power Level (LWA) | 107 dB(A) |
| Sound Pressure Level (LpA) | 94 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Continuous Input Power | 1650 W |
| Power Supply Cord | 2.5 m |
| Weight Without Cable | 35.2 - 37 kg |
| Vacuum cleaner connection Ø in / out | 45/52 mm |
| Bore Size (Arbor Diameter) | 30.0 mm |
| Blade Diameter | 260 mm |
| Max. Bevel Range (Left) | -0.5 - 50 º |
| Max. Cutting Height (above Table) at 90° | 93 mm |
| Max. Cutting Height (above Table) at 45° | 64 mm |
| Table size | 625 x 567 mm |
| Max distance from blade to edge | 624 mm |
