Makita HR2630 Rotary Hammer – 26 mm SDS‑Plus (110 V & 240 V Options)

Makita HR2630 Rotary Hammer – 26 mm SDS‑Plus (110 V & 240 V Options)

Max. Drilling Diameter in Wood
Drilling diameter with TCT core bit
Vibration Level. Hammer Drilling Into Concrete
Optimum Drilling Diameter Range in Concrete
Max. Drilling Diameter in Concrete
Adapted for SDS-PLUS bits
Vibration Level. Chiselling
Impacts per Minute (IPM)
Impact Energy
Max. Drilling Diameter in Steel
Brand
Weight Without Cable
Power Supply Cord
Continuous Input Power
Noise Uncertainty (K Factor)
Sound Pressure Level (LpA)
Sound Power Level (LWA)
Product Dimensions (L x W x H):
Vibration Uncertainty (K Factor)
Voltage
No load speed
Please select from the options above.
Quantity: - +

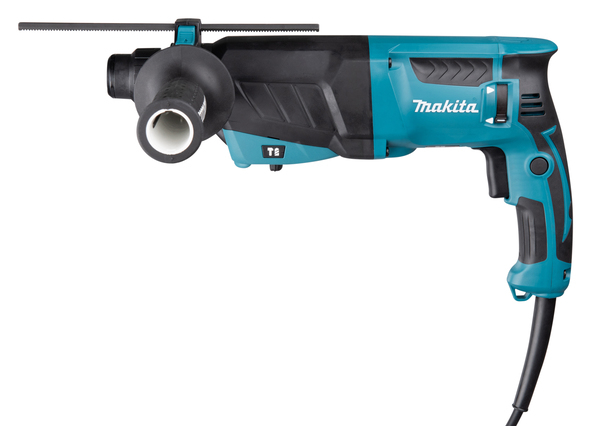

Makita HR2630 Rotary Hammer – 26 mm SDS‑Plus


Professional 3‑Mode Rotary Hammer | 800 W Motor | Solid & Core Drilling | Available in 110 V & 240 V Versions


The Makita HR2630 is a rugged and reliable SDS‑Plus rotary hammer designed for drilling and chiselling tasks in concrete, masonry, wood, and steel. Powered by an efficient 800 W motor, it delivers approximately 2.4 J of impact energy and supports three operating modes: rotation only, hammer + rotation, or hammer-only. This versatility makes it perfect for general building, renovation, and installation work.


Compact, lightweight, and ergonomically designed, the HR2630 features a one-touch sliding SDS‑Plus chuck, torque limiter, variable speed trigger, forward/reverse selector, and depth stop. Available in both 110 V (site-safe) and 240 V (mains) variants to suit user needs.

✅ Key Benefits:

  • 3-mode operation – choose between rotation only, hammering with rotation, or hammering only

  • Compact and lightweight (~2.8 kg) – ideal for overhead or extended use

  • Torque limiter – protects against bit jam and enhances safety

  • Variable-speed trigger and reverse – precise control and versatility

  • One-touch sliding SDS‑Plus chuck – quick and secure bit changes

  • Ergonomic soft-grip handle with 40-bit angle settings for precision chiselling

  • Optional dust-capable model – compatible with Makita vacuum systems

🧰 What’s Included:

  • 1× Makita HR2630 Rotary Hammer (26 mm SDS‑Plus)

  • 1× Side Handle (adjustable)

  • 1× Depth Gauge Rod

  • 1× Carry Case

📐 Product Specifications:

  • Voltage: Available in 110 V and 240 V versions

  • Power Input: 800 W

  • Impact Energy: ~2.4 J (EPTA-standard)

  • No‑Load Speed: 0–1,200 rpm

  • Blows per Minute: 0–4,600 bpm

  • Drilling Capacities:

    • Concrete (solid drill bit): 26 mm

    • Core bit (TCT): up to 68 mm

    • Diamond core bit (dry): up to 80 mm

    • Wood: up to 32 mm

    • Steel: up to 13 mm

  • Optimal drilling range (concrete): 8–18 mm

  • Weight: ~2.8–3.3 kg (depending on region)

  • Product Dimensions: ~385 × 77 × 209 mm

  • Cable Length: 2.5 m (or 4.0 m in some regions)

  • Vibration Levels:

    • Hammer drilling: ~15 m/s²

    • Chiselling: ~9.5 m/s² (K = 1.5 m/s²)

    • Drilling into metal: ≤2.5 m/s²

  • Noise Levels:

    • Sound pressure: ~90–91 dB(A)

    • Sound power: ~101–102 dB(A) (K = 3 dB)
