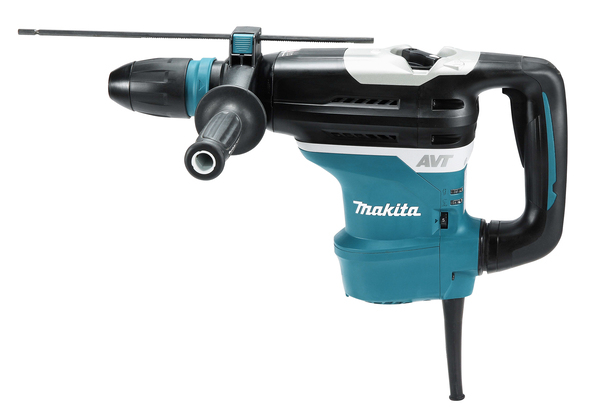

Makita HR4013C Rotary Hammer – 40 mm SDS‑Max


High‑Power Rotary Hammer | AVT Anti‑Vibration | 2‑Mode Operation – Chisel or Hammer & Rotation | 110 V & 240 V Options


The Makita HR4013C is a professional-grade SDS‑Max rotary hammer with a robust 1,100 W (or 11 A) motor and provides approximately 8.0 J (11.4 ft‑lbs) of impact energy for drilling in and chiselling concrete up to 40 mm diameter. Thanks to advanced Anti‑Vibration Technology (AVT), it maintains a low vibration rating of around 5 m/s², helping to reduce operator fatigue and improve precision.


This model offers two operation modes—hammer-only chiselling or combined hammer & rotation drilling—and includes a convenient lock-on or trigger-activated chipping mode with a push-button start/stop. The LED service light notifies users when brushes need replacing, enhancing reliability and maintenance.


Available in both 110 V (site‑safe) and 240 V (standard mains) versions to suit different working environments.

✅ Key Benefits:

  • 2 operation modes – hammer-only chiselling or hammer + rotation for drilling

  • AVT® Anti-Vibration Technology – 3-component system significantly reduces vibration (~5 m/s²)

  • Lock-on and trigger control in chipping mode with easy push-button operation

  • Constant speed control & soft-start – ensures smooth operation even under load

  • LED service light – signals when carbon brushes need replacing

  • Torque limiter & sequential impact timing for smoother and faster drilling

  • Included accessories: side handle, D-handle, depth rod, grease, and carry case — ready for immediate use

🧰 What’s Included:

  • 1× Makita HR4013C Rotary Hammer (SDS‑Max, 40 mm)

  • 1× Side Handle (bar type)

  • 1× D‑Handle

  • 1× Depth Stop Rod

  • 1× Bit Grease

  • 1× Carry Case

  • 1× Instruction Manual

📐 Product Specifications:

  • Voltage: Available in 110 V or 240 V versions

  • Input Power: 1,100 W (11 A at 110 V or 240 V)

  • Impact Energy: ~8.0 J

  • Drilling Capacity (Concrete): Up to 40 mm (TCT bit)

  • Core Bit Capacity: Up to 105 mm

  • Speed (No Load): 250–500 rpm

  • No. of Impacts: 1,450–2,900 bpm

  • Optimum Concrete Drilling Range: 16–35 mm

  • Net Weight: ~6.8 kg (without cable)

  • Cable Length: ~5 m

  • Vibration Levels:
    – Hammer drilling: ~5.0 m/s²
    – Chiselling: ~4.8 m/s² (K = 1.5 m/s²)

  • Sound Levels:
    – Pressure: ~93 dB(A)
    – Power: ~104 dB(A) (K = 3 dB(A))
