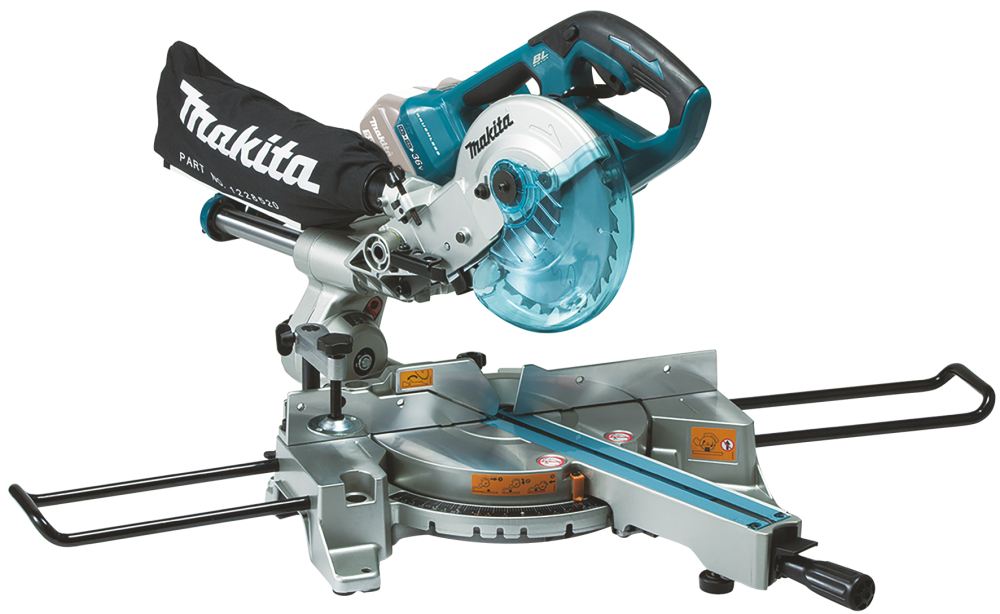

Makita DLS714NZ 18Vx2 LXT Brushless Slide Compound Mitre Saw – 190mm Cordless Power for Precision On-Site Cutting (Body Only)
The Makita DLS714NZ is a compact yet powerful 190mm (7-1/2") brushless slide compound mitre saw, delivering the performance of corded tools with the freedom of dual 18V LXT batteries (36V total). Featuring a brushless motor, smooth sliding rail system, and a wide range of mitre and bevel angles, this saw is ideal for precise crosscuts, mitres, and compound angles on-site. Its lightweight, portable design makes it perfect for joiners, shopfitters, and finishing carpenters working across multiple job locations.
✅ Key Benefits:
190mm blade diameter – ideal for second fix, interior finishing, flooring, and trim
Powered by 2x 18V LXT batteries (36V total) – cordless with corded-level power (batteries sold separately)
Brushless motor – improves runtime, power output, and motor longevity
Slide compound design – allows wider crosscuts in a compact unit
Mitre range: 0–47° left / 0–57° right – versatile angled cutting for various applications
Bevel range: 0–45° left and right – dual bevel for quick compound mitres
Electric brake + soft start – safer and smoother operation
Dust collection port – for cleaner operation when connected to extractor
Lightweight and portable (13.5 kg) – easy to transport and set up on-site
Aluminium base and precision rail system – stable and durable for accurate cuts
Ideal for finishing carpenters, floorers, and installation professionals
⚠️ Body only – batteries, charger, and stand not included. Fully compatible with all Makita 18V LXT batteries.
| Brand | Makita |
|---|---|
| Brushless Motor | Yes |
| No load speed | 5700 min⁻¹ |
| Voltage | 18V |
| Vibration Level (3 axes) | ≤ 2.5 m/s² |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Product Dimensions (L x W x H): | 655 x 430 x 445 mm |
| Sound Power Level (LWA) | 97 dB(A) |
| Sound Pressure Level (LpA) | 88 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vacuum cleaner connection Ø in / out | 32/37 mm |
| Battery System | LXT |
| Bore Size (Arbor Diameter) | 20 mm |
| Tool weight with battery | 14.4 - 14.7 kg |
| Nominal Battery Voltage | 2x 18 V |
| Body Only | Yes |
| Body Only Machine | Yes |
| Blade Diameter | 190 mm |
| Voltage LXT | Yes |
| Max. Bevel Range (Left) | 45 / 5 º |
| Capacity 45° | 52 x 212 mm |
| Capacity 90° | 52 x 300 mm |
| Max. Mitre Range (Left) | 47 / 57 º |
| Capacity 45° left | 40 x 300 mm |
There are no downloads for this product.
